Home > Products > Switches > Rocker Switches > M2012TYW01-JB

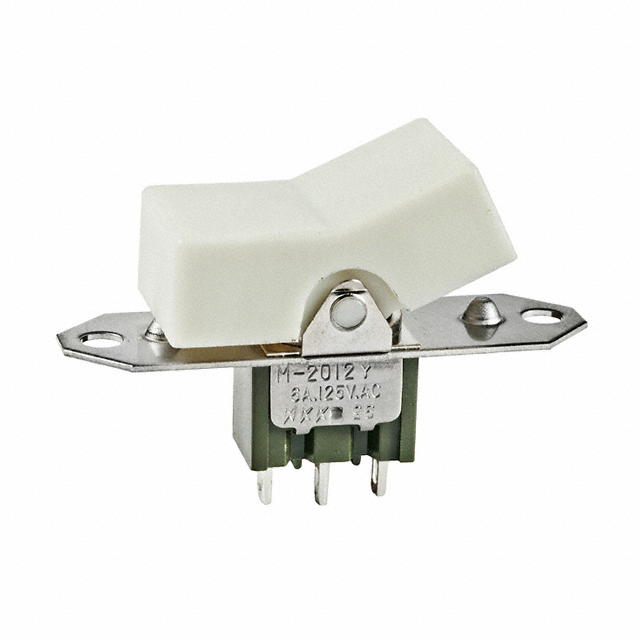

M2012TYW01-JB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2012TYW01-JB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2012TYW01-JB
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	300 pcs	500 pcs	1000 pcs
~~In Stock~~ 33635 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.554	$1.518	$1.446	$1.373
	$1.301	$1.265	$1.229	$1.084

Product parameter
Data sheet

Product parameter

Part Number	M2012TYW01-JB	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33635 pcs	Data sheet	M Series, Mini Rocker Flat Frame
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On	Series	M
Panel Cutout Dimensions	Rectangular - 28.50mm x 16.00mm	Packaging	Bulk
Other Names	M2012TYW01JB	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount, Flange	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch SPDT 6A (AC), 4A (DC) 125V Panel Mount, Flange	Current Rating	6A (AC), 4A (DC)
Color - Actuator/Cap	White	Circuit	SPDT
Actuator Type	Concave (Standard V)	Actuator Marking	No Marking
