Home > Products > Switches > Rocker Switches > M2012TYW01-JH

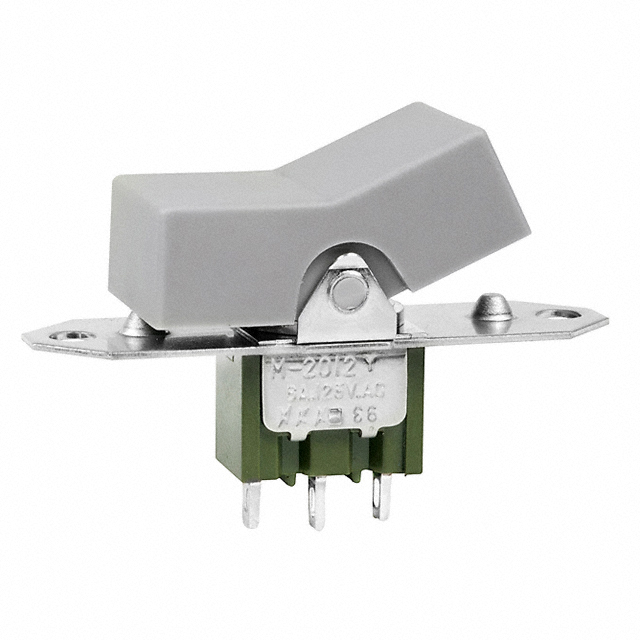

M2012TYW01-JH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2012TYW01-JH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2012TYW01-JH
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 18846 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$1.687

Product parameter
Data sheet

Product parameter

Part Number	M2012TYW01-JH	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18846 pcs	Data sheet	M Series, Mini Rocker Flat Frame
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On	Series	M
Panel Cutout Dimensions	Rectangular - 28.50mm x 16.00mm	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Flange
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch SPDT 6A (AC), 4A (DC) 125V Panel Mount, Flange
Current Rating	6A (AC), 4A (DC)	Color - Actuator/Cap	Gray
Circuit	SPDT	Actuator Type	Concave (Standard V)
Actuator Marking	No Marking
