Home > Products > Switches > Rocker Switches > M2012TYG01-JA

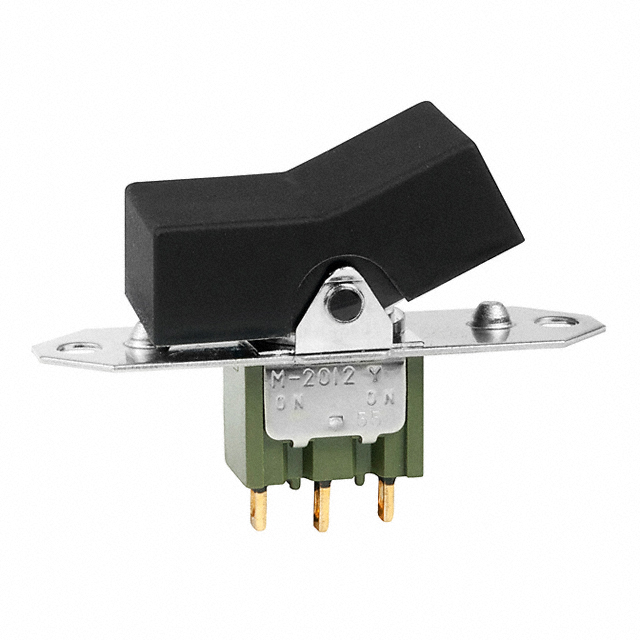

M2012TYG01-JA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2012TYG01-JA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2012TYG01-JA
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 17677 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$1.841

Product parameter
Data sheet

Product parameter

Part Number	M2012TYG01-JA	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17677 pcs	Data sheet	M Series, Mini Rocker Flat Frame
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	Solder Lug
Switch Function	On-On	Series	M
Panel Cutout Dimensions	Rectangular - 28.50mm x 16.00mm	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Flange
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Rocker Switch SPDT 0.4VA (AC/DC) 28V Panel Mount, Flange	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Concave (Standard V)	Actuator Marking	No Marking
