Home > Products > Switches > Pushbutton Switches > LP0125CMKW01F

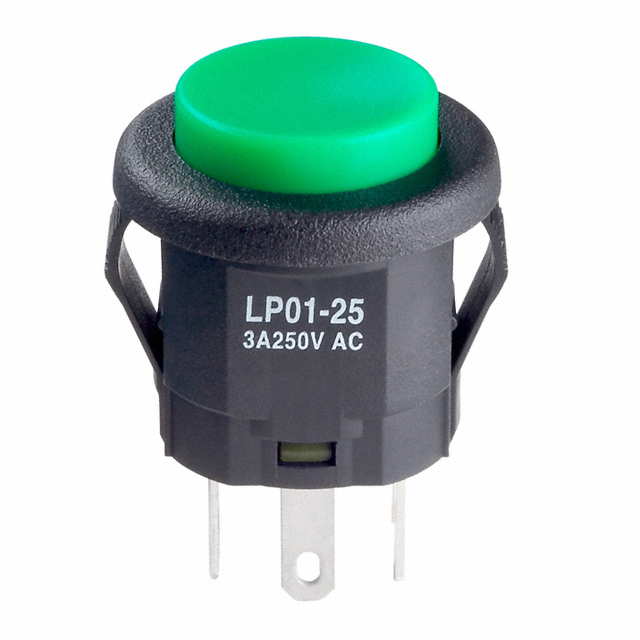

LP0125CMKW01F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LP0125CMKW01F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LP0125CMKW01F
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 12244 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.616	$3.345	$3.255	$3.074
	$2.983	$2.803	$2.622	$2.486

Product parameter
Data sheet

Product parameter

Part Number	LP0125CMKW01F	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12244 pcs	Data sheet	LP01 Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-Mom
Series	LP01	Panel Cutout Dimensions	Circular - 17.30mm Dia
Packaging	Bulk	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	500,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	50,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Snap-In	Current Rating	3A (AC/DC)
Color - Actuator/Cap	Green	Circuit	DPDT
Actuator Type	Round, Button
