Home > Products > Switches > Pushbutton Switches > LP0125CMKW015FB

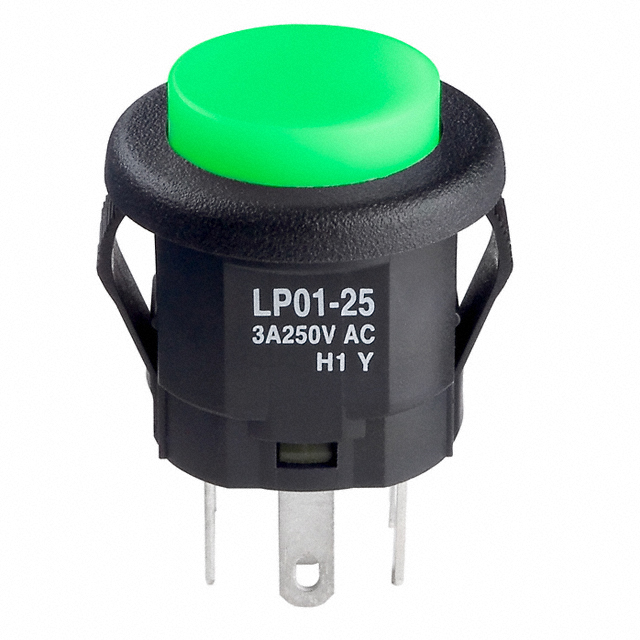

LP0125CMKW015FB

LP0125CMKW015FB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LP0125CMKW015FB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LP0125CMKW015FB
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 12277 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.39	$4.06	$3.951	$3.731
	$3.621	$3.402	$3.182	$3.018

Product parameter
Data sheet

Product parameter

Part Number	LP0125CMKW015FB	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12277 pcs	Data sheet	LP01 Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-Mom
Series	LP01	Panel Cutout Dimensions	Circular - 17.30mm Dia
Packaging	Bulk	Operating Temperature	-10°C ~ 50°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	500,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.1 VDC	Illumination Type, Color	LED, Green
Features	-	Electrical Life	50,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In	Current Rating	3A (AC/DC)
Color - Actuator/Cap	White	Circuit	DPDT
Actuator Type	Round, Button
