Home > Products > Switches > Pushbutton Switches > LP0125CCKW015DB

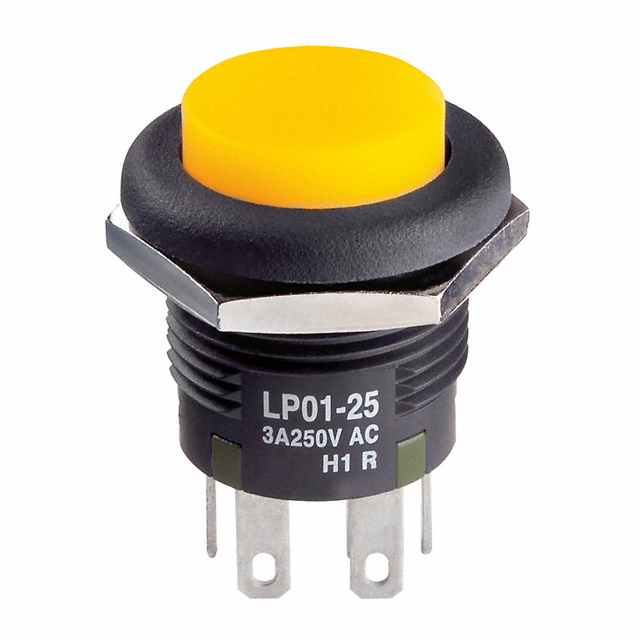

LP0125CCKW015DB

LP0125CCKW015DB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LP0125CCKW015DB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LP0125CCKW015DB
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 11010 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.434	$4.101	$3.99	$3.769
	$3.658	$3.436	$3.214	$3.048

Product parameter
Data sheet

Product parameter

Part Number	LP0125CCKW015DB	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11010 pcs	Data sheet	LP01 Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-Mom
Series	LP01	Panel Cutout Dimensions	Circular - 16.00mm Dia
Packaging	Bulk	Other Names	360-2531 LP0125CCKW015DB-ND
Operating Temperature	-10°C ~ 50°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	500,000 Cycles
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2 VDC
Illumination Type, Color	LED, Amber	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
Current Rating	3A (AC/DC)	Color - Actuator/Cap	White
Circuit	DPDT	Actuator Type	Round, Button
