Home > Products > Switches > Tactile Switches > JF15SP4H

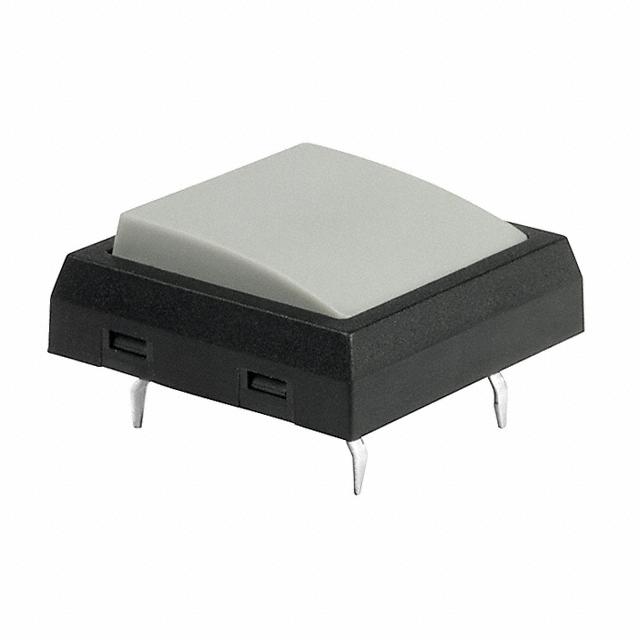

JF15SP4H

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JF15SP4H with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JF15SP4H
Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 49715 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.41	$1.355	$1.246	$1.084	$1.03
	$1.003	$0.975	$0.759	$0.705

Product parameter
Data sheet

Product parameter

Part Number	JF15SP4H	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	49715 pcs	Data sheet	JF Series Ultra Thin Tactiles
Category	Switches	Termination Style	PC Pin
Switch Travel	0.80mm	Switch Function	Off-Mom
Series	JF	Packaging	Tray
Outline	17.70mm x 17.70mm	Other Names	360-2821 JF15SP4H-ND
Operating Temperature	-25°C ~ 85°C	Operating Force	200gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	500,000 Cycles	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Process Sealed
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Square Button
Actuator Orientation	Top Actuated	Actuator Material	Polyamide (PA), Nylon
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	6.98mm
