Home > Products > Switches > Tactile Switches > JF15SP3D

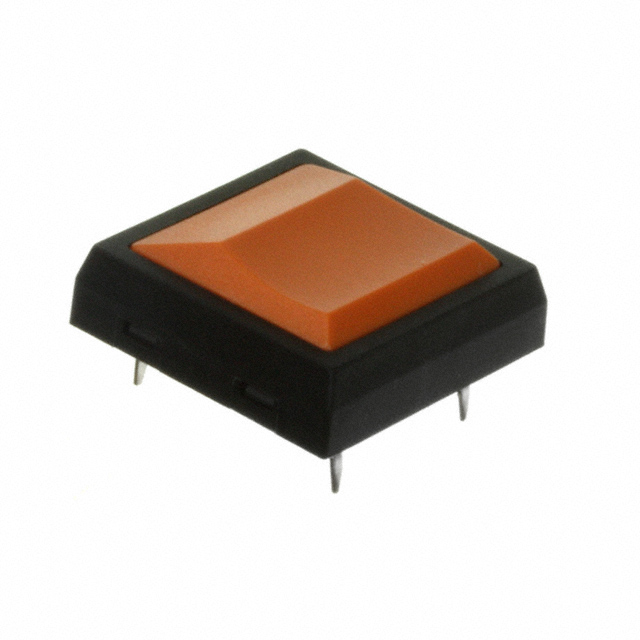

JF15SP3D

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JF15SP3D with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JF15SP3D
Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 51805 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.272	$1.221	$1.124	$0.977	$0.928
	$0.904	$0.879	$0.684	$0.635

Product parameter
Data sheet

Product parameter

Part Number	JF15SP3D	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51805 pcs	Data sheet	JF Series Ultra Thin Tactiles
Category	Switches	Termination Style	PC Pin
Switch Travel	0.80mm	Switch Function	Off-Mom
Series	JF	Packaging	Tray
Outline	17.70mm x 17.70mm	Operating Temperature	-25°C ~ 85°C
Operating Force	196gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	500,000 Cycles
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Process Sealed	Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Contact Rating @ Voltage	0.05A @ 24VDC	Circuit	SPST-NO
Actuator Type	Square Button	Actuator Orientation	Top Actuated
Actuator Material	Polyamide (PA), Nylon	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	6.78mm
