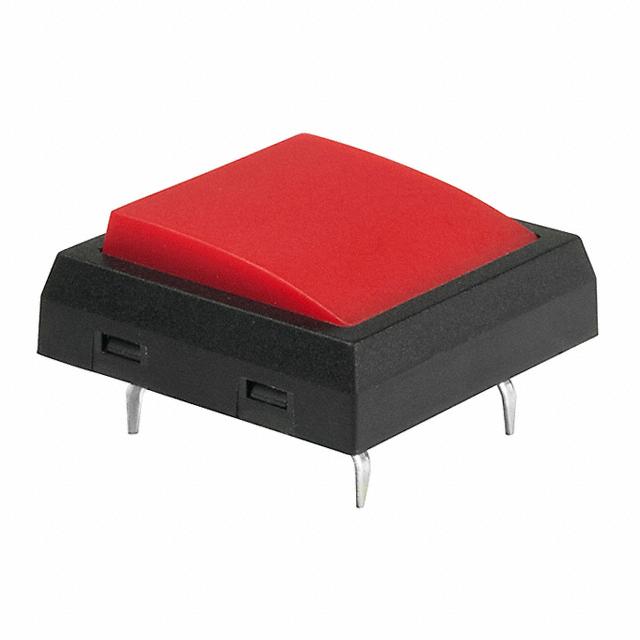

JF15SP4C
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JF15SP4C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JF15SP4C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JF15SP4C |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.407 | $1.352 | $1.244 | $1.082 | $1.028 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $1.00 | $0.973 | $0.757 | $0.703 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JF15SP4C | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44612 pcs | Data sheet | JF Series Ultra Thin Tactiles |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.80mm | Switch Function | Off-Mom |
| Series | JF | Packaging | Tray |
| Outline | 17.70mm x 17.70mm | Operating Temperature | -25°C ~ 85°C |
| Operating Force | 200gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 500,000 Cycles |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Process Sealed | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.05A @ 24VDC | Circuit | SPST-NO |
| Actuator Type | Square Button | Actuator Orientation | Top Actuated |
| Actuator Material | Polyamide (PA), Nylon | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 6.98mm |
