Home > Products > Switches > Tactile Switches > JF15SP1C

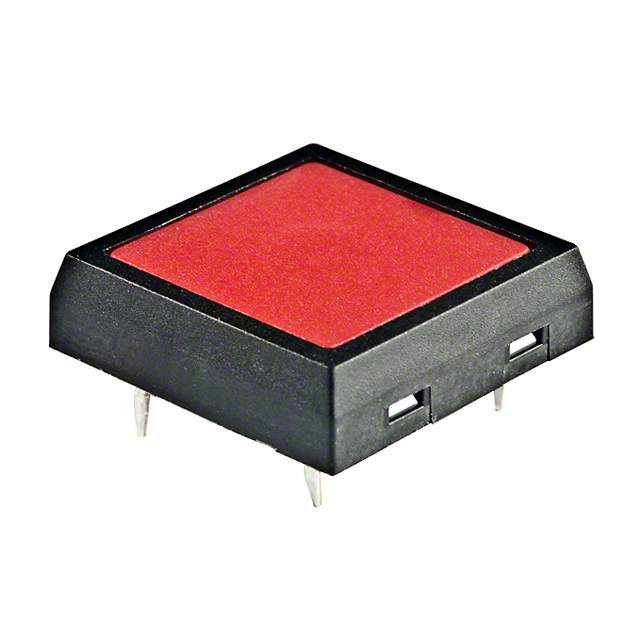

JF15SP1C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JF15SP1C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JF15SP1C
Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 61655 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.119	$1.076	$0.99	$0.861	$0.818
	$0.797	$0.775	$0.603	$0.56

Product parameter
Data sheet

Product parameter

Part Number	JF15SP1C	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	61655 pcs	Data sheet	JF Series Ultra Thin Tactiles
Category	Switches	Termination Style	PC Pin
Switch Travel	0.40mm	Switch Function	Off-Mom
Series	JF	Packaging	Tray
Outline	17.70mm x 17.70mm	Other Names	360-3434 JF15SP1C-ND
Operating Temperature	-25°C ~ 85°C	Operating Force	300gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	500,000 Cycles	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Process Sealed
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Square Button
Actuator Orientation	Top Actuated	Actuator Material	Polyamide (PA), Nylon
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	5.08mm
