Home > Products > Switches > Tactile Switches > JF15RP3FF

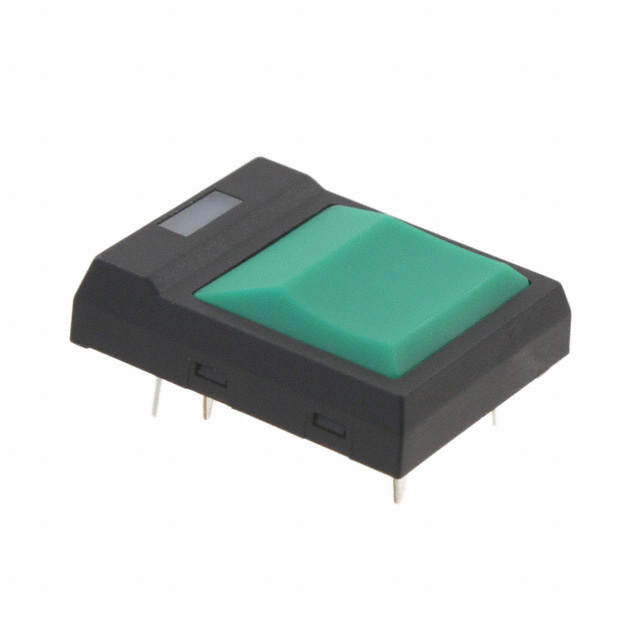

JF15RP3FF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JF15RP3FF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JF15RP3FF
Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 30258 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.577	$1.502	$1.427	$1.389
	$1.276	$1.201	$1.089	$1.032

Product parameter
Data sheet

Product parameter

Part Number	JF15RP3FF	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30258 pcs	Data sheet	JF Series Ultra Thin Tactiles
Category	Switches	Termination Style	PC Pin
Switch Travel	0.80mm	Switch Function	Off-Mom
Series	JF	Packaging	Tray
Outline	22.80mm x 17.70mm	Operating Temperature	-25°C ~ 70°C
Operating Force	200gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	500,000 Cycles
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.2 VDC
Illumination Type, Color	LED, Green	Illumination	Illuminated
Features	Process Sealed	Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Contact Rating @ Voltage	0.05A @ 24VDC	Circuit	SPST-NO
Actuator Type	Square Button	Actuator Orientation	Top Actuated
Actuator Material	Polyamide (PA), Nylon	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	6.78mm
