Home > Products > Switches > Tactile Switches > JF15RP3GF

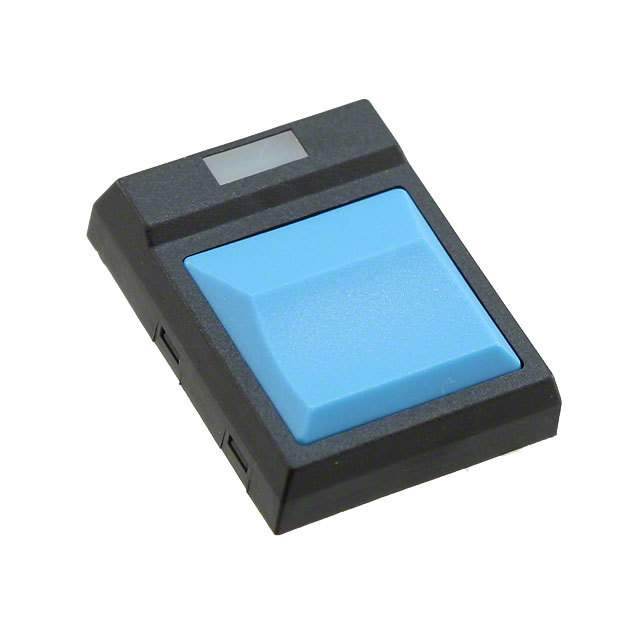

JF15RP3GF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JF15RP3GF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JF15RP3GF
Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 30395 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.571	$1.495	$1.42	$1.383
	$1.271	$1.196	$1.084	$1.028

Product parameter
Data sheet

Product parameter

Part Number	JF15RP3GF	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30395 pcs	Data sheet	JF Series Ultra Thin Tactiles
Category	Switches	Termination Style	PC Pin
Switch Travel	0.80mm	Switch Function	Off-Mom
Series	JF	Packaging	Tray
Outline	22.80mm x 17.70mm	Other Names	360-3270 JF15RP3GF-ND
Operating Temperature	-25°C ~ 70°C	Operating Force	200gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	500,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.2 VDC	Illumination Type, Color	LED, Green
Illumination	Illuminated	Features	Process Sealed
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Square Button
Actuator Orientation	Top Actuated	Actuator Material	Polyamide (PA), Nylon
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	6.78mm
