Home > Products > Switches > Tactile Switches > JB15LPC-JC

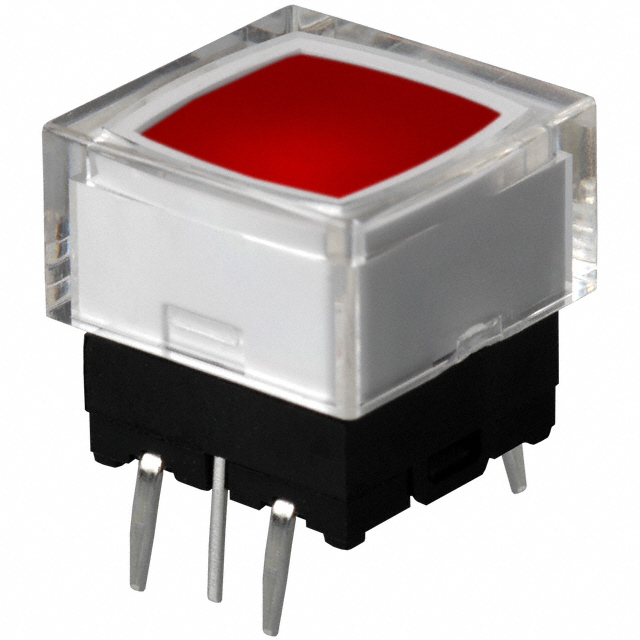

JB15LPC-JC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB15LPC-JC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JB15LPC-JC
Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 43934 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.559	$1.498	$1.378	$1.198
	$1.138	$1.108	$1.078	$0.839

Product parameter
Data sheet

Product parameter

Part Number	JB15LPC-JC	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43934 pcs	Data sheet	JB Series Datasheet
Category	Switches	Termination Style	PC Pin
Switch Travel	0.25mm	Switch Function	Off-Mom
Series	JB	Packaging	Bulk
Outline	10.00mm x 10.00mm	Other Names	360-1261 JB15LPCJC
Operating Temperature	-25°C ~ 70°C	Operating Force	176gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	5,000,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	1.8 VDC	Illumination Type, Color	LED, Red
Illumination	Illuminated	Features	Process Sealed
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Square Button
Actuator Orientation	Top Actuated	Actuator Material	Polyacetal
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	11.20mm
