Home > Products > Switches > Tactile Switches > JB15LPC

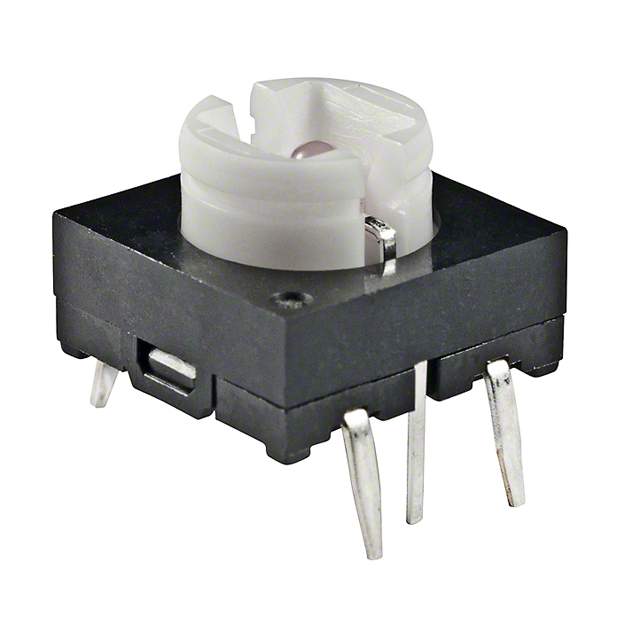

JB15LPC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB15LPC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JB15LPC
Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	300 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 68855 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.117	$1.074	$0.988	$0.859	$0.816
	$0.795	$0.773	$0.602	$0.559

Product parameter
Data sheet

Product parameter

Part Number	JB15LPC	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	68855 pcs	Data sheet	JB Series Datasheet
Category	Switches	Termination Style	PC Pin
Switch Travel	0.25mm	Switch Function	Off-Mom
Series	JB	Packaging	Bulk
Outline	10.00mm x 10.00mm	Operating Temperature	-25°C ~ 70°C
Operating Force	176gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	5,000,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	1.8 VDC
Illumination Type, Color	LED, Red	Illumination	Illuminated
Features	Process Sealed	Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Contact Rating @ Voltage	0.05A @ 24VDC	Circuit	SPST-NO
Actuator Type	Plunger for Cap	Actuator Orientation	Top Actuated
Actuator Material	-	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	-
