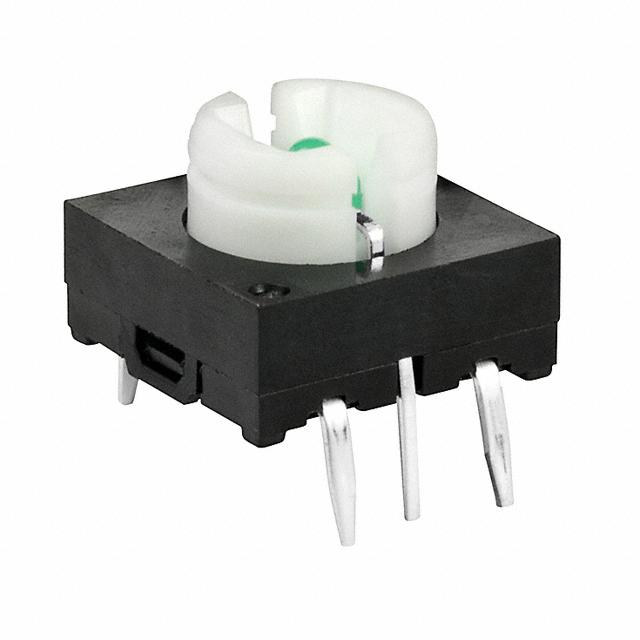

JB15LPF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB15LPF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JB15LPF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JB15LPF |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.13 | $1.087 | $1.00 | $0.869 | $0.826 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.804 | $0.782 | $0.609 | $0.565 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JB15LPF | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68399 pcs | Data sheet | JB Series Datasheet |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | JB | Packaging | Bulk |
| Outline | 10.00mm x 10.00mm | Other Names | 360-3248 JB15LPF-ND |
| Operating Temperature | -25°C ~ 70°C | Operating Force | 176gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 5,000,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | 2.1 VDC |
| Illumination Type, Color | LED, Green | Illumination | Illuminated |
| Features | Process Sealed | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.05A @ 24VDC | Circuit | SPST-NO |
| Actuator Type | Plunger for Cap | Actuator Orientation | Top Actuated |
| Actuator Material | - | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | - |
