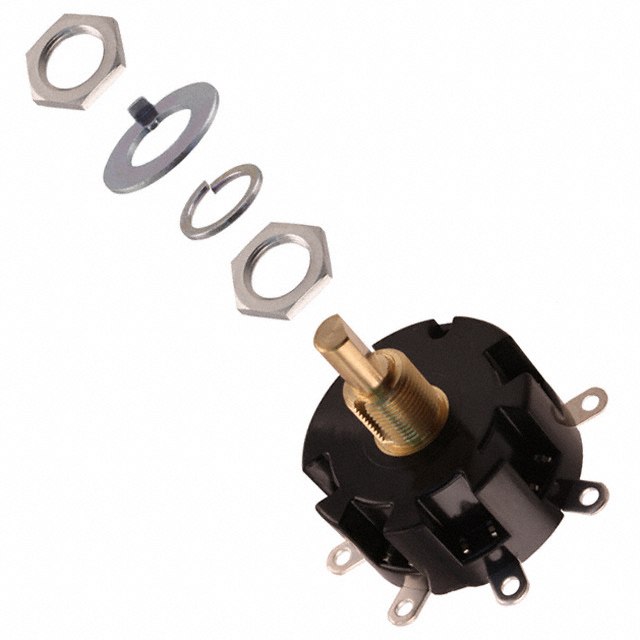

HS13Z-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HS13Z-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HS13Z-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HS13Z-D |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH ROTARY 4POS 6A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.658 | $2.197 | $2.168 | $1.995 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.908 | $1.706 | $1.677 | $1.648 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HS13Z-D | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH ROTARY 4POS 6A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20561 pcs | Data sheet | HS, TS, PS Series |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Series | HS | Panel Cutout Dimensions | Circular - 10.30mm Dia |
| Other Names | 360-2351 HS13Z-D-RO HS13ZD |
Operating Force | 15 ~ 24gfm |
| Number of Positions | 4 | Number of Poles per Deck | 1 |
| Number of Decks | 1 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Index Stops | Fixed |
| Features | - | Detailed Description | Rotary Switch 4 Position SP4T 6A (AC), 5A (DC) 125VAC Panel Mount |
| Depth Behind Panel | 20.00mm | Current Rating | 6A (AC), 5A (DC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Phosphor Bronze |
| Contact Finish | - | Circuit per Deck | SP4T |
| Angle of Throw | 45° | Actuator Type | Flatted (6mm Dia) |
| Actuator Length | 10.00mm |
