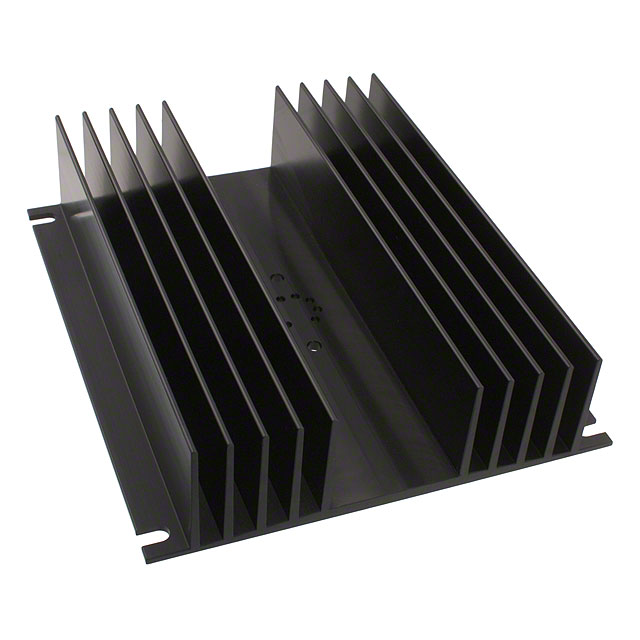

HS13
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HS13 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HS13 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HS13 |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | HEATSINK TO3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $27.829 | $26.088 | $24.349 | $23.479 | $22.61 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | HS13 | Manufacturer | Apex Microtechnology |
|---|---|---|---|
| Description | HEATSINK TO3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1658 pcs | Data sheet | HS13 Drawing |
| Category | Fans, Thermal Management | Width | 4.812" (122.22mm) |
| Type | Board Level, Extrusion | Thermal Resistance @ Natural | 1.48°C/W |
| Thermal Resistance @ Forced Air Flow | 0.40°C/W @ 800 LFM | Shape | Rectangular, Fins |
| Series | Apex Precision Power® | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-3 | Other Names | 598-1473 598-2029 598-2029-ND HS13CI HS13CI-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 5.421" (139.70mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.310" (33.27mm) | Diameter | - |
| Detailed Description | Heat Sink TO-3 Aluminum Board Level, Extrusion | Attachment Method | Bolt On |
