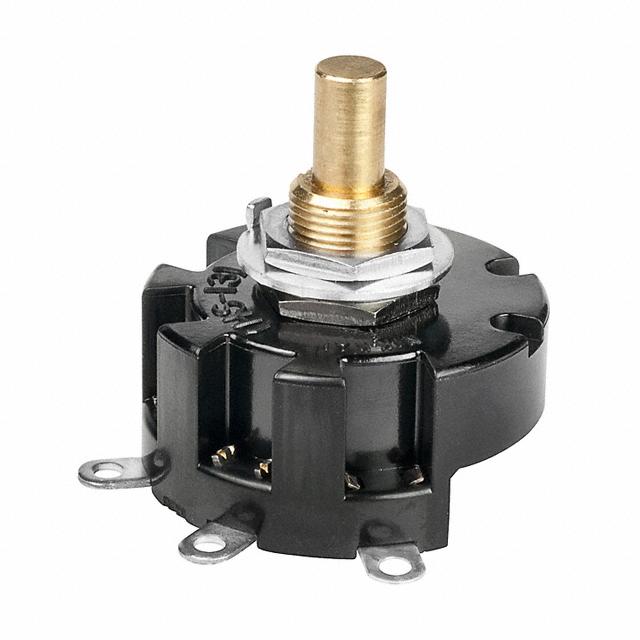

HS13X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HS13X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HS13X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HS13X |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH ROTARY 2POS 6A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.751 | $2.274 | $2.244 | $2.064 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.974 | $1.765 | $1.735 | $1.705 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HS13X | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH ROTARY 2POS 6A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18072 pcs | Data sheet | HS, TS, PS Series |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Series | HS | Panel Cutout Dimensions | Circular - 10.30mm Dia |
| Other Names | 360-2808 HS13X-ND HS13X-RO HS13X-RO-ND |
Operating Force | 15 ~ 24gfm |
| Number of Positions | 2 | Number of Poles per Deck | 1 |
| Number of Decks | 1 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Index Stops | Fixed |
| Features | - | Detailed Description | Rotary Switch 2 Position SPDT 6A (AC), 5A (DC) 125VAC Panel Mount |
| Depth Behind Panel | 20.00mm | Current Rating | 6A (AC), 5A (DC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Phosphor Bronze |
| Contact Finish | - | Circuit per Deck | SPDT |
| Angle of Throw | 45° | Actuator Type | Round (6mm Dia) |
| Actuator Length | 10.00mm |
