Home > Products > Power Supplies - Board Mount > DC DC Converters > MPDTH05010WAS

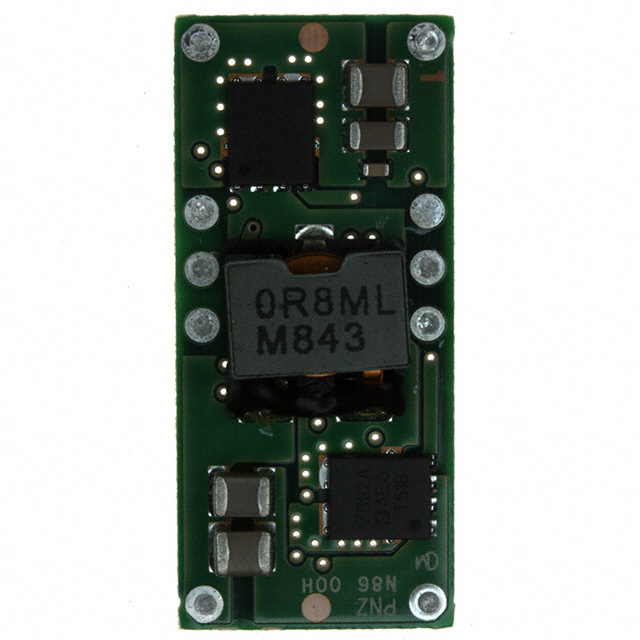

MPDTH05010WAS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPDTH05010WAS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MPDTH05010WAS
Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 0.8-3.6V 54W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4526 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MPDTH05010WAS	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 0.8-3.6V 54W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4526 pcs	Data sheet	MPDTHxx010WAx Short
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-	Voltage - Output 1	0.8 ~ 3.6 V
Voltage - Input (Min)	4.5V	Voltage - Input (Max)	5.5V
Type	Non-Isolated PoL Module	Size / Dimension	1.37" L x 0.62" W x 0.38" H (34.8mm x 15.8mm x 9.6mm)
Series	MPD	Power (Watts)	54W
Packaging	Tray	Package / Case	10-SMD Module
Other Names	490-5078 MPDTH05010WAS-ND	Operating Temperature	-40°C ~ 85°C
Number of Outputs	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Remote On/Off, OCP, SCP, UVLO	Efficiency	95%
Detailed Description	Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6 V 15A 4.5V - 5.5V Input	Current - Output (Max)	15A
Control Features	Enable, Active High	Applications	ITE (Commercial)
