Home > Products > Power Supplies - Board Mount > DC DC Converters > MPDTH05050WAS

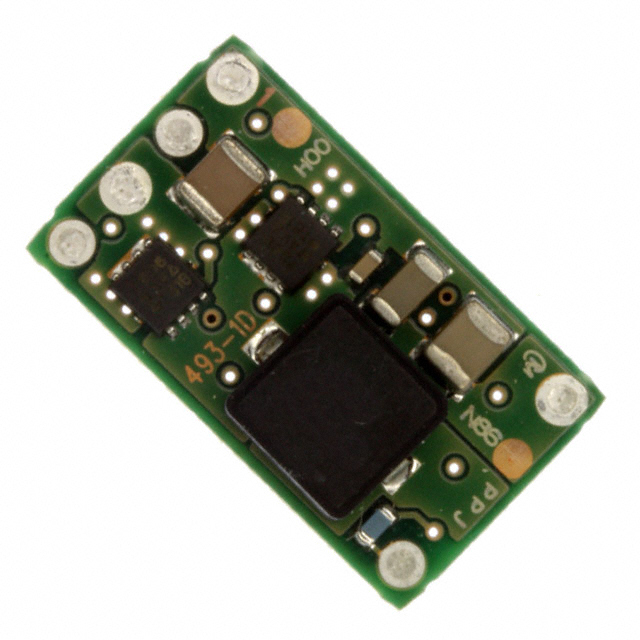

MPDTH05050WAS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPDTH05050WAS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MPDTH05050WAS
Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 0.8-3.6V 21W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5581 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter

Product parameter

Part Number	MPDTH05050WAS	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 0.8-3.6V 21W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5581 pcs	Data sheet
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-	Voltage - Output 1	0.8 ~ 3.6 V
Voltage - Input (Min)	4.5V	Voltage - Input (Max)	5.5V
Type	Non-Isolated PoL Module	Size / Dimension	0.87" L x 0.49" W x 0.36" H (22.1mm x 12.6mm x 9.1mm)
Series	MPD	Power (Watts)	21W
Packaging	Tray	Package / Case	6-SMD Module
Other Names	490-5086 MPDTH05050WAS-ND	Operating Temperature	-40°C ~ 85°C
Number of Outputs	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Remote On/Off, OCP, SCP, UVLO	Efficiency	95%
Detailed Description	Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6 V 6A 4.5V - 5.5V Input	Current - Output (Max)	6A
Control Features	Enable, Active High	Applications	ITE (Commercial)
