Home > Products > Power Supplies - Board Mount > DC DC Converters > MPDTH03060WAS

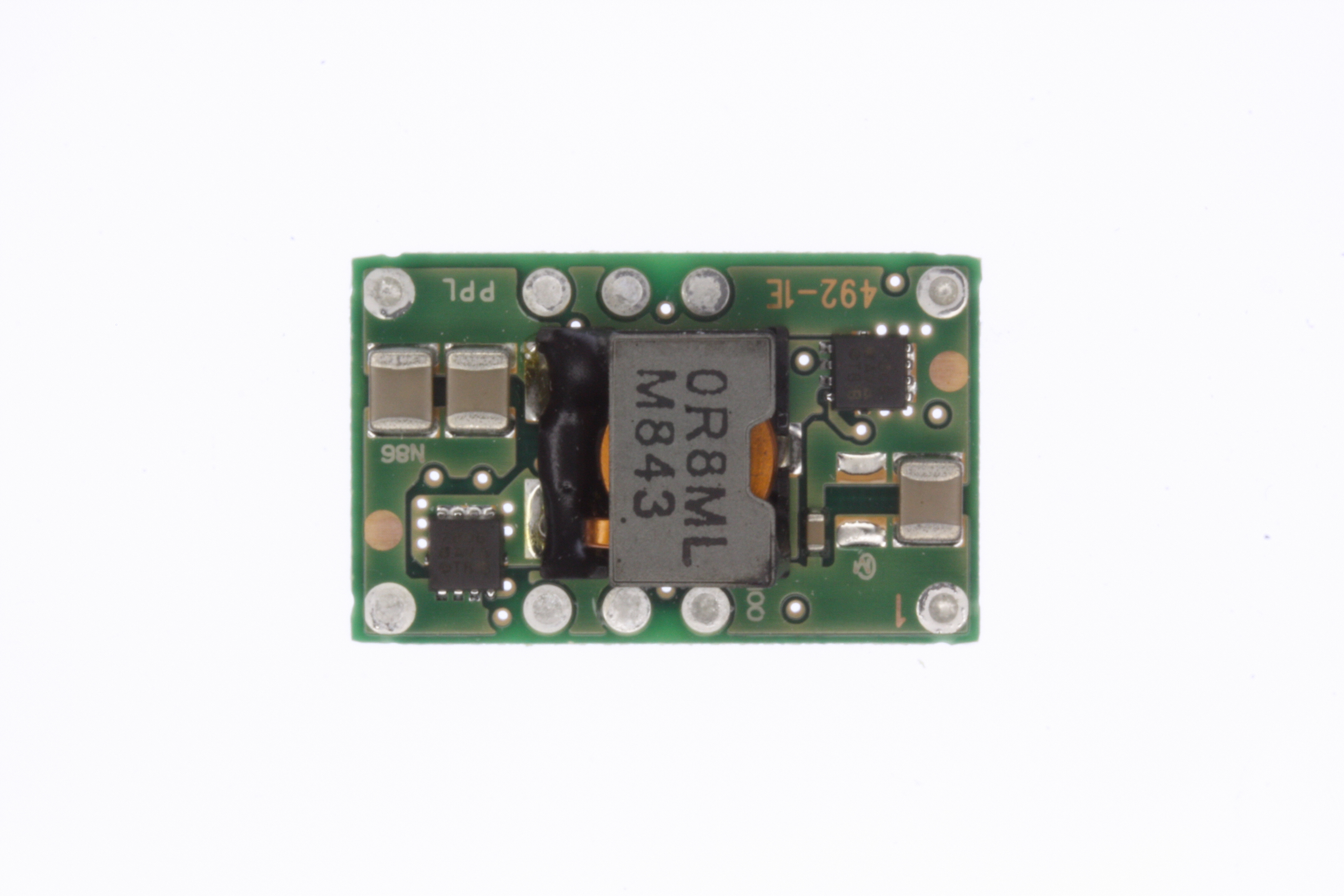

MPDTH03060WAS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPDTH03060WAS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MPDTH03060WAS
Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 0.8-2.5V 25W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5564 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MPDTH03060WAS	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 0.8-2.5V 25W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5564 pcs	Data sheet	MPDTHxx060 Series MPDTH03060WAx
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-	Voltage - Output 1	0.8 ~ 2.5 V
Voltage - Input (Min)	2.95V	Voltage - Input (Max)	3.65V
Type	Non-Isolated PoL Module	Size / Dimension	0.99" L x 0.62" W x 0.38" H (25.3mm x 15.8mm x 9.6mm)
Series	MPD	Power (Watts)	25W
Packaging	Tray	Package / Case	10-SMD Module
Other Names	490-5072 MPDTH03060WAS-ND	Operating Temperature	-40°C ~ 85°C
Number of Outputs	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Remote On/Off, OCP, SCP, UVLO	Efficiency	93%
Detailed Description	Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5 V 10A 2.95V - 3.65V Input	Current - Output (Max)	10A
Control Features	Enable, Active High	Applications	ITE (Commercial)
