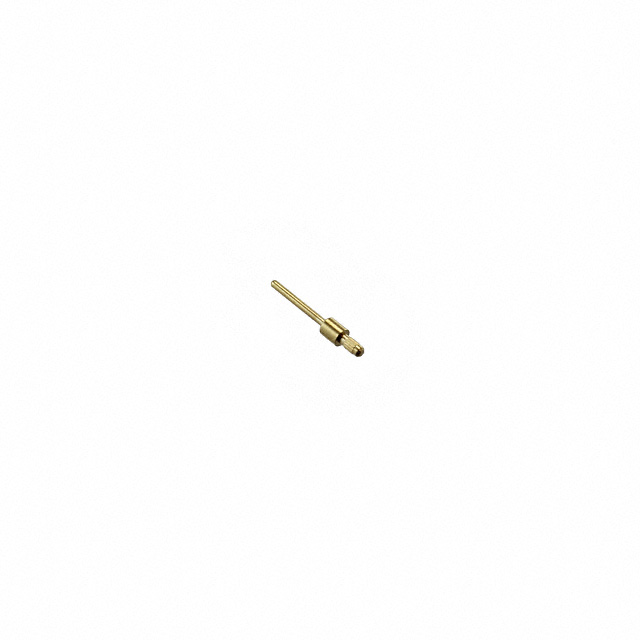

3155-0-00-15-00-00-03-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3155-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3155-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3155-0-00-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC 0.018DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.309 | $0.272 | $0.256 | $0.245 | $0.234 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.213 | $0.192 | $0.17 | $0.154 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3155-0-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.018DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 126732 pcs | Data sheet | Printed Circuit Pins (in.)Printed Circuit Pins (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit, Knurled |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | 3155 | Pin Size - Below Flange | 0.025" (0.64mm) Dia |
| Pin Size - Above Flange | 0.018" (0.46mm) Dia | Packaging | Bulk |
| Other Names | 3155-000150000030 3155-000150000030-ND 3155000150000030 ED11421 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.026" (0.66mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.290" (7.37mm) | Length - Below Flange | 0.060" (1.52mm) |
| Length - Above Flange | 0.180" (4.57mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.045" (1.14mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
