3156-2-00-01-00-00-08-0

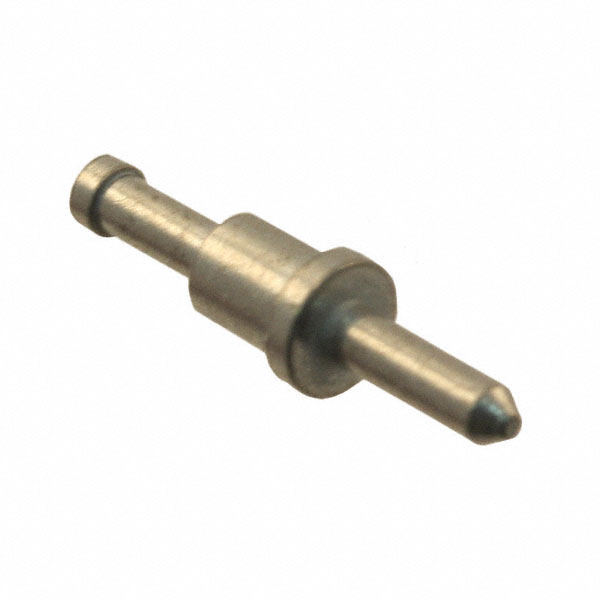

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3156-2-00-01-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3156-2-00-01-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3156-2-00-01-00-00-08-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | TERM TURRET PIN L=3.81MM |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.314 | $0.276 | $0.26 | $0.249 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.238 | $0.217 | $0.195 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3156-2-00-01-00-00-08-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | TERM TURRET PIN L=3.81MM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 98543 pcs | Data sheet | Solder Terminal Pins Type (in.)Solder Terminal Pins (metric) |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Double End, Pin | Staking Side OD | - |
| Staking Side ID | - | Series | 3156 |
| Other Names | 3156-200010000080 3156200010000080 Q5396740U |
Number of Turrets | Single |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.076" (1.93mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Length - Overall | 0.379" (9.63mm) | Length - Below Flange | 0.207" (5.26mm) |
| Length - Above Board | 0.172" (4.37mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.093" (2.36mm) | Diameter - Turret Head | 0.050" (1.27mm) |
| Detailed Description | Terminal Turret Connector Double End, Pin 0.172" (4.37mm) Tin-Lead | Contact Material | Brass Alloy |
| Contact Finish Thickness | 200.0µin (5.08µm) | Contact Finish | Tin-Lead |
| Board Thickness | 0.062" (1.57mm) |
