3154-0-00-15-00-00-03-0

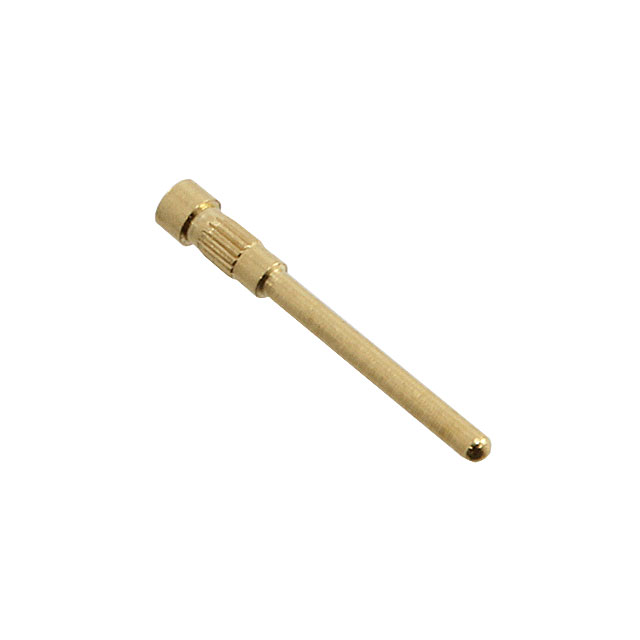

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3154-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3154-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3154-0-00-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC 0.018DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.064 | $0.061 | $0.052 | $0.045 | $0.042 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.037 | $0.036 | $0.029 | $0.027 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3154-0-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.018DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 898776 pcs | Data sheet | Printed Circuit Pins (metric)Printed Circuit Pins (in) |
| Category | Connectors, Interconnects | Termination | Press-Fit, Knurled |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | 3154 | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.018" (0.46mm) Dia | Packaging | Bulk |
| Other Names | 3154-000150000030 3154-000150000030-ND 3154000150000030 ED1286 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.026" (0.66mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.260" (6.60mm) | Length - Below Flange | - |
| Length - Above Flange | 0.240" (6.10mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.032" (0.81mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
