SG7905AT

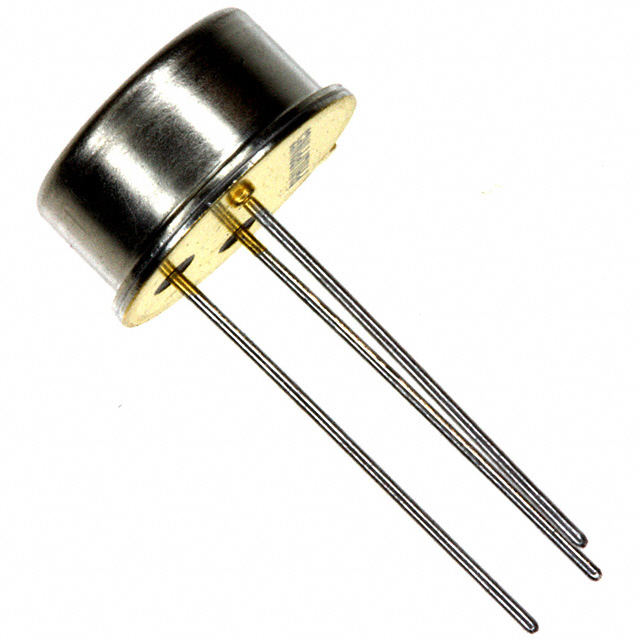

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SG7905AT with confidence from Components-World.HK, 1 Year Warranty
Dowload SG7905AT Details in PDFSee Product Specifications for product details.
Buy SG7905AT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SG7905AT |
|---|---|
| Manufacturer | Microsemi |
| Description | IC REG LINEAR -5V 500MA TO99 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SG7905AT | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC REG LINEAR -5V 500MA TO99 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4427 pcs | Data sheet | SG79xx(A) |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 2.3V @ 500mA |
| Voltage - Output (Min/Fixed) | -5V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | -35V | Supplier Device Package | TO-99 |
| Series | - | Protection Features | Over Current, Over Temperature, Short Circuit |
| Packaging | Bulk | Package / Case | TO-39 |
| PSRR | 54dB (120Hz) | Output Type | Fixed |
| Output Configuration | Negative | Operating Temperature | -55°C ~ 150°C |
| Number of Regulators | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Detailed Description | Linear Voltage Regulator IC Negative Fixed 1 Output -5V 500mA TO-99 | Current - Quiescent (Iq) | 2.5mA |
| Current - Output | 500mA | Control Features | - |
| Base Part Number | SG7905 |
