SG7815T-883B

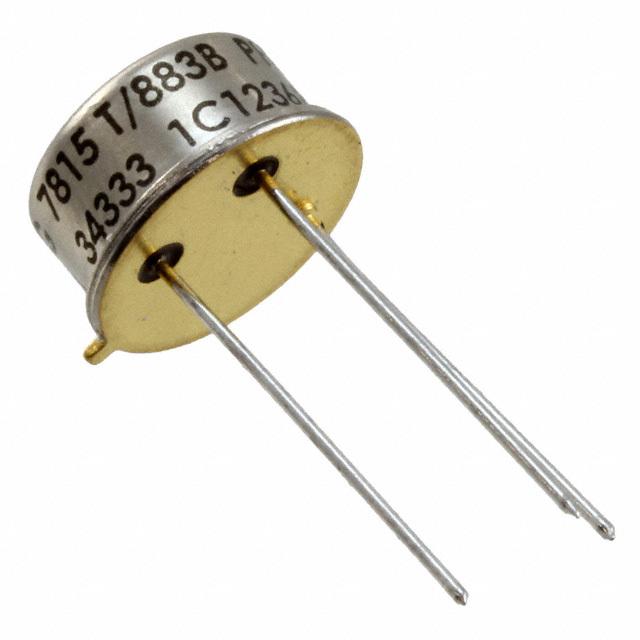

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SG7815T-883B with confidence from Components-World.HK, 1 Year Warranty
Dowload SG7815T-883B Details in PDFSee Product Specifications for product details.
Buy SG7815T-883B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SG7815T-883B |
|---|---|
| Manufacturer | Microsemi |
| Description | IC REG LINEAR 15V 500MA TO39 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $14.465 | $13.527 | $12.51 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SG7815T-883B | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC REG LINEAR 15V 500MA TO39 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 2421 pcs | Data sheet | SG78xx(A) Series |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 2.5V @ 500mA |
| Voltage - Output (Min/Fixed) | 15V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | 35V | Supplier Device Package | TO-39 |
| Series | Military, MIL-STD-883 | Protection Features | Over Current, Over Temperature |
| Packaging | Bulk | Package / Case | TO-39-3 Lens Top Metal Can |
| PSRR | 60dB (120Hz) | Output Type | Fixed |
| Output Configuration | Positive | Other Names | 1259-1130 1259-1130-MIL |
| Operating Temperature | -55°C ~ 125°C | Number of Regulators | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 15V 500mA TO-39 |
| Current - Quiescent (Iq) | 7mA | Current - Output | 500mA |
| Control Features | - | Base Part Number | SG7815 |
