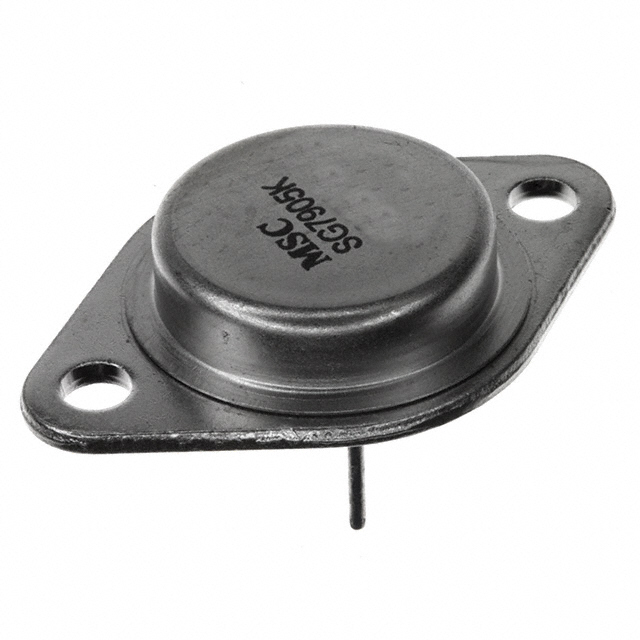

SG7905K
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SG7905K with confidence from Components-World.HK, 1 Year Warranty
Dowload SG7905K Details in PDFSee Product Specifications for product details.
Buy SG7905K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SG7905K |
|---|---|
| Manufacturer | Microsemi |
| Description | IC REG LINEAR 1.5A TO3 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SG7905K | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC REG LINEAR 1.5A TO3 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6008 pcs | Data sheet | SG79xx(A) |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 2.3V @ 500mA |
| Voltage - Output (Min/Fixed) | -5V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | -35V | Supplier Device Package | TO-204AD (TO-3) |
| Series | Military, MIL-STD-883 | Protection Features | Over Current, Over Temperature, Thermal Shutdown |
| Packaging | Bulk | Package / Case | TO-204AA, TO-3 |
| PSRR | 54dB (120Hz) | Output Type | Fixed |
| Output Configuration | Negative | Operating Temperature | -55°C ~ 125°C (TA) |
| Number of Regulators | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Detailed Description | Linear Voltage Regulator IC Negative Fixed 1 Output -5V 1.5A TO-204AD (TO-3) | Current - Quiescent (Iq) | 2.5mA |
| Current - Output | 1.5A | Control Features | - |
| Base Part Number | SG7905 |
