Home > Products > Integrated Circuits (ICs) > PMIC - Power Supply Controllers, Monitors > SG2543N

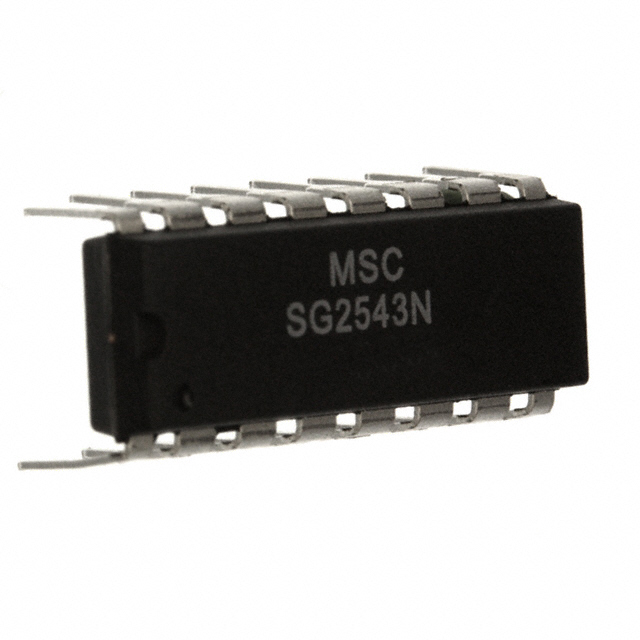

SG2543N

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SG2543N with confidence from Components-World.HK, 1 Year Warranty

Dowload SG2543N Details in PDF

Request a Quote

Part Number	SG2543N
Manufacturer	Microsemi
Description	IC POWER SUPPLY SUPERVISOR 16DIP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4203 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	SG2543N	Manufacturer	Microsemi
Description	IC POWER SUPPLY SUPERVISOR 16DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4203 pcs	Data sheet	SG1543,2543,3543
Category	Integrated Circuits (ICs)	Voltage - Supply	4.5 V ~ 40 V
Voltage - Input	-	Supplier Device Package	DIP
Series	-	Packaging	Tube
Package / Case	16-DIP	Other Names	Q5711894
Operating Temperature	-25°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Power Supply Controller Power Supply, Supervisor DIP	Current - Supply	7mA
Base Part Number	SG*543	Applications	Power Supply, Supervisor
