SG2525AN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SG2525AN with confidence from Components-World.HK, 1 Year Warranty
Dowload SG2525AN Details in PDFSee Product Specifications for product details.
Buy SG2525AN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SG2525AN |
|---|---|
| Manufacturer | Microsemi |

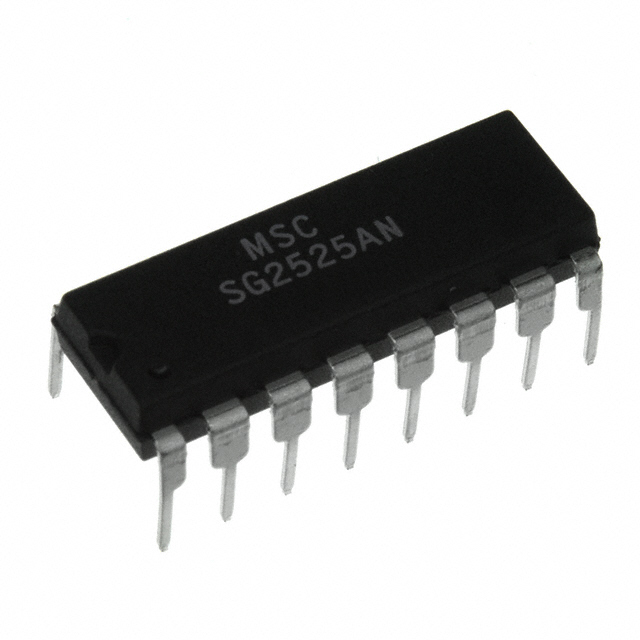

| Description | IC REG CTRLR PUSH-PULL 16DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $3.112 | $2.802 | $2.553 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $2.304 | $2.117 | $1.93 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SG2525AN | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC REG CTRLR PUSH-PULL 16DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16725 pcs | Data sheet | SG(15,25,35)25A,27A |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 8 V ~ 35 V |
| Topology | Push-Pull | Synchronous Rectifier | Yes |
| Supplier Device Package | 16-PDIP | Series | - |
| Serial Interfaces | - | Packaging | Tube |
| Package / Case | 16-DIP (0.300", 7.62mm) | Output Type | Transistor Driver |
| Output Phases | 1 | Output Configuration | Positive |
| Operating Temperature | -25°C ~ 85°C (TA) | Number of Outputs | 2 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Up/Step-Down | Frequency - Switching | 100Hz ~ 350kHz |
| Duty Cycle (Max) | 49% | Detailed Description | Push-Pull Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 16-PDIP |
| Control Features | Enable, Soft Start | Clock Sync | Yes |
| Base Part Number | SG*525A |
