SG2803J-883B

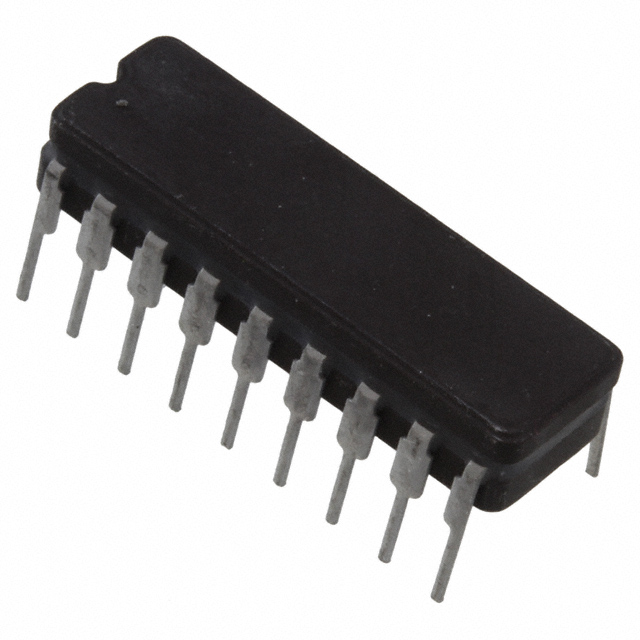

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SG2803J-883B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SG2803J-883B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SG2803J-883B |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS 8NPN DARL 50V 0.5A 18DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SG2803J-883B | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS 8NPN DARL 50V 0.5A 18DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5387 pcs | Data sheet | SG2800 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA | Transistor Type | 8 NPN Darlington |
| Supplier Device Package | 18-CDIP | Series | - |
| Power - Max | - | Packaging | Tube |
| Package / Case | - | Other Names | 1259-1084 1259-1084-MIL Q10610783 Q10991540 Q11657753 SG2803J883B |
| Operating Temperature | -55°C ~ 125°C (TA) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | - | Detailed Description | Bipolar (BJT) Transistor Array 8 NPN Darlington 50V 500mA Through Hole 18-CDIP |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 350mA, 2V | Current - Collector Cutoff (Max) | - |
| Current - Collector (Ic) (Max) | 500mA |
