JAN1N5615US

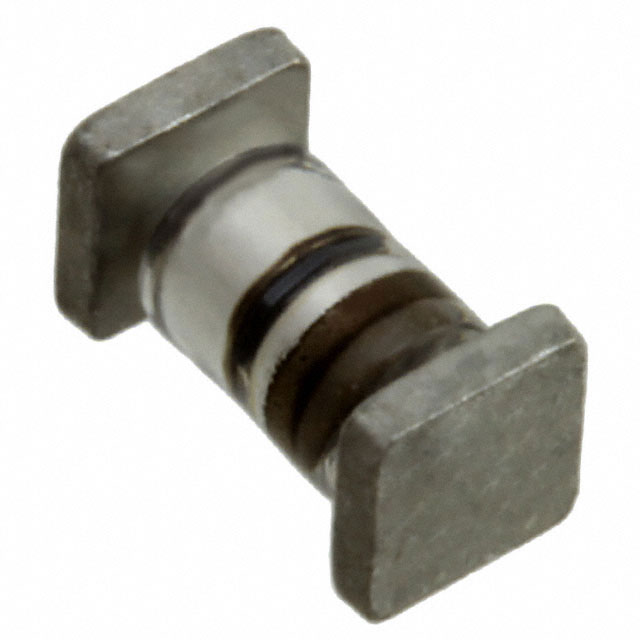

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JAN1N5615US with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JAN1N5615US with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JAN1N5615US |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE GEN PURP 200V 1A D-5A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.759 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JAN1N5615US | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE GEN PURP 200V 1A D-5A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 7350 pcs | Data sheet | 1N5615US thru 1N5623US |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 800mV @ 3A |
| Voltage - DC Reverse (Vr) (Max) | 200V | Supplier Device Package | D-5A |
| Speed | Fast Recovery = 200mA (Io) | Series | Military, MIL-PRF-19500/429 |
| Reverse Recovery Time (trr) | 150ns | Packaging | Bulk |
| Package / Case | SQ-MELF, A | Other Names | 1086-15221 1086-15221-MIL |
| Operating Temperature - Junction | -65°C ~ 200°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 200V 1A Surface Mount D-5A | Current - Reverse Leakage @ Vr | 500µA @ 200V |
| Current - Average Rectified (Io) | 1A | Capacitance @ Vr, F | - |
