APTM10UM01FAG

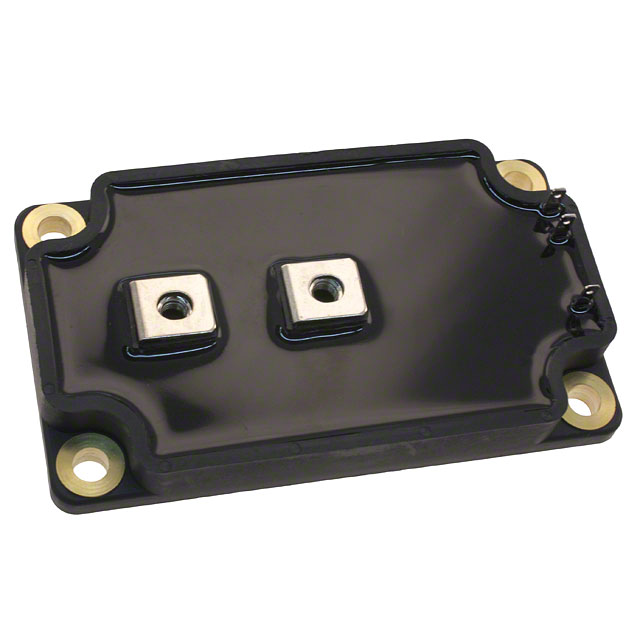

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTM10UM01FAG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTM10UM01FAG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTM10UM01FAG |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET N-CH 100V 860A SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $70.118 | $66.731 | $64.313 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTM10UM01FAG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET N-CH 100V 860A SP6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 567 pcs | Data sheet | Power Products CatalogAPTM10UM01FAG |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 12mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SP6 | Series | - |
| Rds On (Max) @ Id, Vgs | 1.6 mOhm @ 275A, 10V | Power Dissipation (Max) | 2500W (Tc) |
| Packaging | Bulk | Package / Case | SP6 |
| Other Names | APTM10UM01FAGMI APTM10UM01FAGMI-ND |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 60000pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 2100nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 860A (Tc) 2500W (Tc) Chassis Mount SP6 | Current - Continuous Drain (Id) @ 25°C | 860A (Tc) |
