APTM10HM05FG

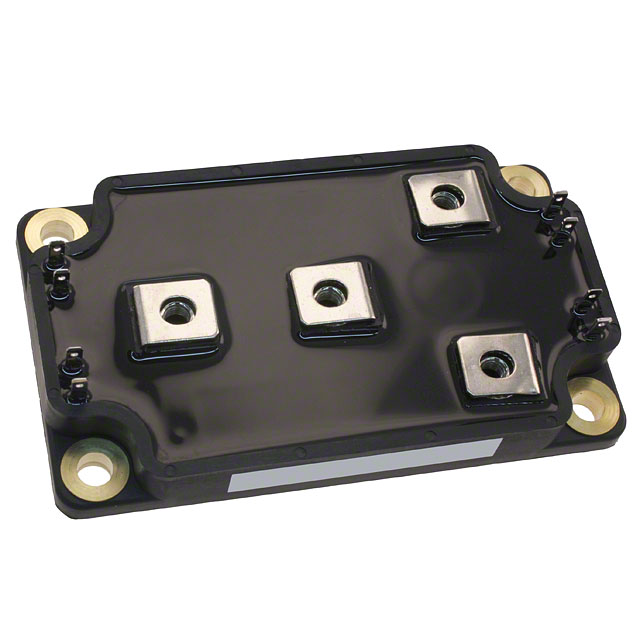

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTM10HM05FG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTM10HM05FG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTM10HM05FG |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET 4N-CH 100V 278A SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $62.525 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTM10HM05FG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET 4N-CH 100V 278A SP6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 609 pcs | Data sheet | Power Products CatalogAPTM10HM05FG |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 5mA |
| Supplier Device Package | SP6 | Series | - |
| Rds On (Max) @ Id, Vgs | 5 mOhm @ 125A, 10V | Power - Max | 780W |
| Packaging | Bulk | Package / Case | SP6 |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 20000pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 700nC @ 10V | FET Type | 4 N-Channel (H-Bridge) |
| FET Feature | Standard | Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | Mosfet Array 4 N-Channel (H-Bridge) 100V 278A 780W Chassis Mount SP6 | Current - Continuous Drain (Id) @ 25°C | 278A |
