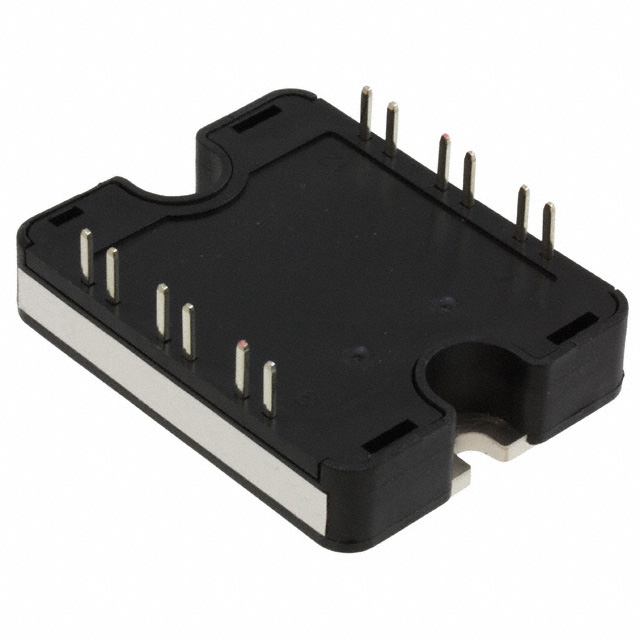

APTGT75A120T1G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGT75A120T1G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGT75A120T1G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGT75A120T1G |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MOD IGBT TRENCH PH LEG SP1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $15.872 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGT75A120T1G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | POWER MOD IGBT TRENCH PH LEG SP1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1928 pcs | Data sheet | APTGT75A120T1GPower Products Catalog |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A | Supplier Device Package | SP1 |
| Series | - | Power - Max | 357W |
| Package / Case | SP1 | Operating Temperature | -40°C ~ 150°C (TJ) |
| NTC Thermistor | Yes | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 5.34nF @ 25V |
| Input | Standard | IGBT Type | Trench Field Stop |
| Detailed Description | IGBT Module Trench Field Stop Half Bridge 1200V 110A 357W Chassis Mount SP1 | Current - Collector Cutoff (Max) | 250µA |
| Current - Collector (Ic) (Max) | 110A | Configuration | Half Bridge |
