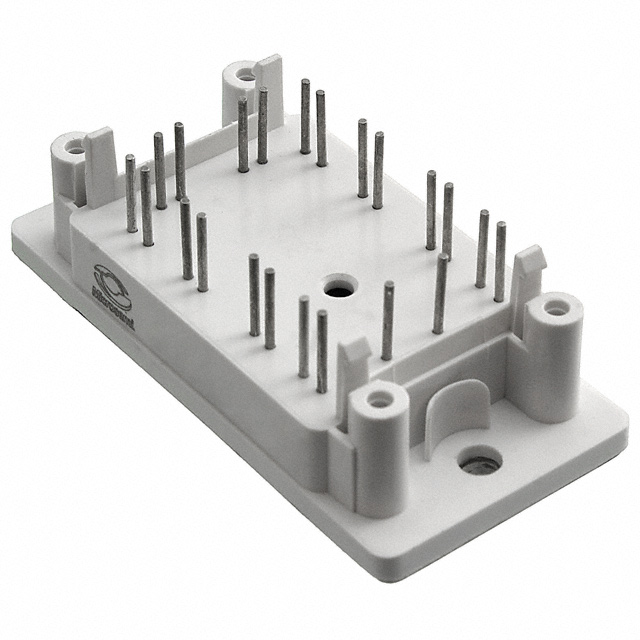

APTGFQ25H120T2G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGFQ25H120T2G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGFQ25H120T2G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGFQ25H120T2G |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT 1200V 40A 227W MODULE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $21.85 | $20.565 | $19.28 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGFQ25H120T2G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT 1200V 40A 227W MODULE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2014 pcs | Data sheet | Power Products CatalogAPTGFQ25H120T2G |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 25A | Supplier Device Package | SP2 |
| Series | - | Power - Max | 227W |
| Package / Case | SP2 | Operating Temperature | - |
| NTC Thermistor | Yes | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 2.02nF @ 25V | Input | Standard |
| IGBT Type | NPT and Fieldstop | Detailed Description | IGBT Module NPT and Fieldstop Full Bridge 1200V 40A 227W Through Hole SP2 |
| Current - Collector Cutoff (Max) | 250µA | Current - Collector (Ic) (Max) | 40A |
| Configuration | Full Bridge |
