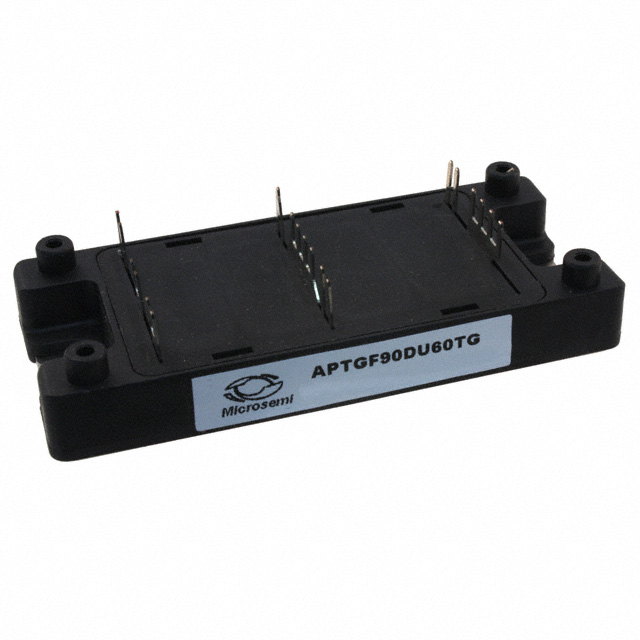

APTGF90DU60TG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGF90DU60TG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGF90DU60TG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGF90DU60TG |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT MODULE NPT DUAL SOURCE SP4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGF90DU60TG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT MODULE NPT DUAL SOURCE SP4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5009 pcs | Data sheet | Power Products CatalogAPTGF90DU60TG |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 90A | Supplier Device Package | SP4 |
| Series | - | Power - Max | 416W |
| Package / Case | SP4 | Operating Temperature | - |
| NTC Thermistor | Yes | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 4.3nF @ 25V | Input | Standard |
| IGBT Type | NPT | Detailed Description | IGBT Module NPT Dual, Common Source 600V 110A 416W Chassis Mount SP4 |
| Current - Collector Cutoff (Max) | 250µA | Current - Collector (Ic) (Max) | 110A |
| Configuration | Dual, Common Source |
