APTGL180A1202G

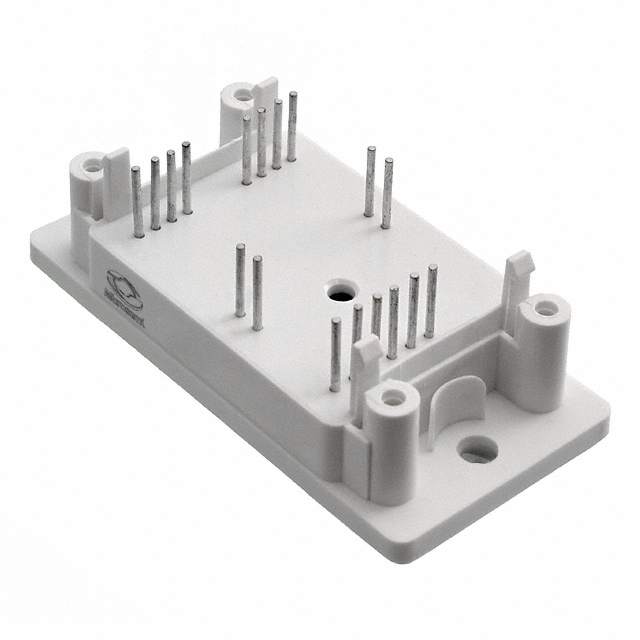

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGL180A1202G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGL180A1202G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGL180A1202G |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MOD IGBT4 PHASE LEG SP2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $33.893 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGL180A1202G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | POWER MOD IGBT4 PHASE LEG SP2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1090 pcs | Data sheet | APTGL180A1202G |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 150A | Supplier Device Package | SP2 |
| Series | - | Power - Max | 750W |
| Package / Case | SP2 | Operating Temperature | -40°C ~ 175°C (TJ) |
| NTC Thermistor | No | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 9.3nF @ 25V |
| Input | Standard | IGBT Type | Trench Field Stop |
| Detailed Description | IGBT Module Trench Field Stop Half Bridge 1200V 220A 750W Chassis Mount SP2 | Current - Collector Cutoff (Max) | 300µA |
| Current - Collector (Ic) (Max) | 220A | Configuration | Half Bridge |
