APT35GP120JDQ2

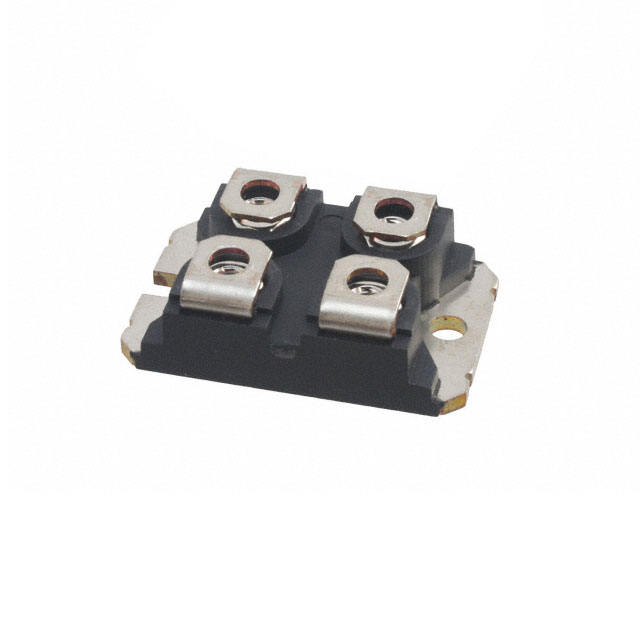

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APT35GP120JDQ2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APT35GP120JDQ2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APT35GP120JDQ2 |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT 1200V 64A 284W SOT227 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APT35GP120JDQ2 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT 1200V 64A 284W SOT227 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3968 pcs | Data sheet | APT35GP120JDQ2 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 35A | Supplier Device Package | ISOTOP® |
| Series | POWER MOS 7® | Power - Max | 284W |
| Package / Case | ISOTOP | Other Names | APT35GP120JDQ2MI APT35GP120JDQ2MI-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 3.24nF @ 25V |
| Input | Standard | IGBT Type | PT |
| Detailed Description | IGBT Module PT Single 1200V 64A 284W Chassis Mount ISOTOP® | Current - Collector Cutoff (Max) | 350µA |
| Current - Collector (Ic) (Max) | 64A | Configuration | Single |
