APT35GP120B2DQ2G

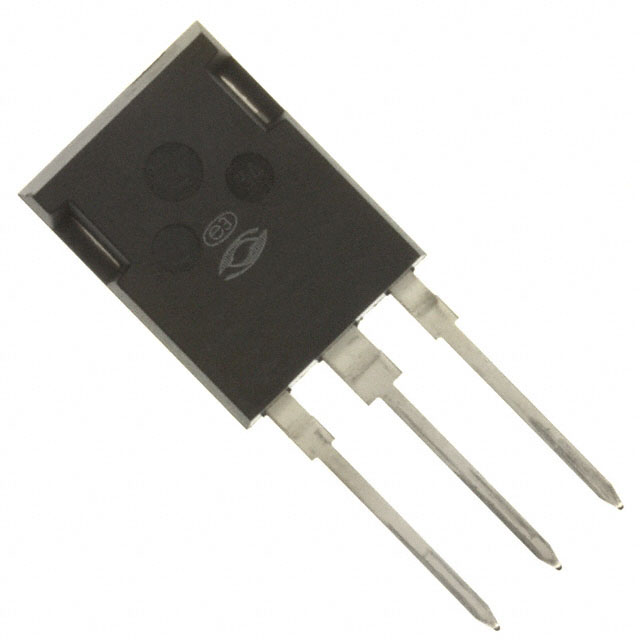

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APT35GP120B2DQ2G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APT35GP120B2DQ2G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APT35GP120B2DQ2G |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT 1200V 96A 543W TMAX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 120 pcs | 270 pcs |
|---|---|---|---|---|---|
| $7.704 | $7.004 | $6.479 | $5.953 | $5.428 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | APT35GP120B2DQ2G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT 1200V 96A 543W TMAX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5796 pcs | Data sheet | Power Products CatalogAPT35GP120B2DQ2(G) |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 35A | Test Condition | 600V, 35A, 4.3 Ohm, 15V |
| Td (on/off) @ 25°C | 16ns/95ns | Switching Energy | 750µJ (on), 680µJ (off) |
| Series | POWER MOS 7® | Power - Max | 543W |
| Packaging | Tube | Package / Case | TO-247-3 Variant |
| Other Names | APT35GP120B2DQ2GMI APT35GP120B2DQ2GMI-ND |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard | IGBT Type | PT |
| Gate Charge | 150nC | Detailed Description | IGBT PT 1200V 96A 543W Through Hole |
| Current - Collector Pulsed (Icm) | 140A | Current - Collector (Ic) (Max) | 96A |
