Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > MCP3909RD-3PH1

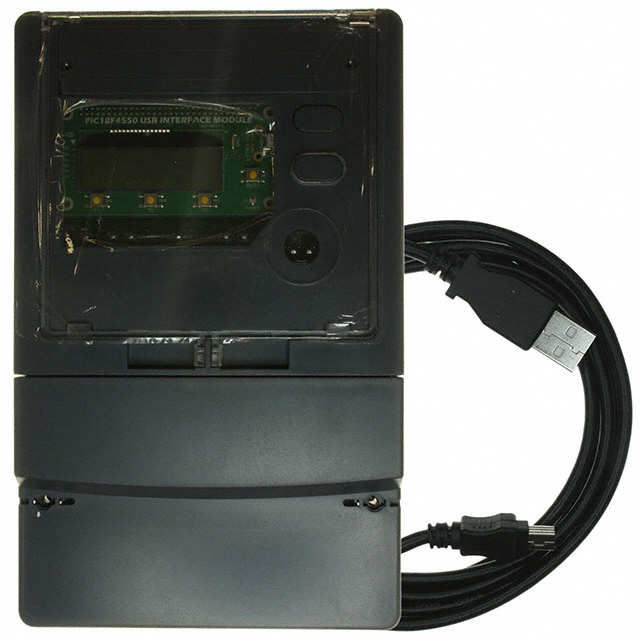

MCP3909RD-3PH1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP3909RD-3PH1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP3909RD-3PH1
Manufacturer	Micrel / Microchip Technology
Description	REF DESIGN MCP3909 3PH ENGY MTR
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 4806 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MCP3909RD-3PH1	Manufacturer	Micrel / Microchip Technology
Description	REF DESIGN MCP3909 3PH ENGY MTR	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4806 pcs	Data sheet	MCP3909 dsPIC33FJ128GP206,MCP3909 Ref Design Guide MCP3909 Reference Design
Category	Development Boards, Kits, Programmers	Utilized IC / Part	MCP3909, PIC18F2520, PIC18F4550
Type	Power Management	Supplied Contents	Board(s)
Series	-	Secondary Attributes	-
Primary Attributes	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Function	Energy/Power Meter
Embedded	No	Detailed Description	MCP3909, PIC18F2520, PIC18F4550 Energy/Power Meter Power Management Evaluation Board
