Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Analog to Digital Converters ( > MCP3909EV-MCU16

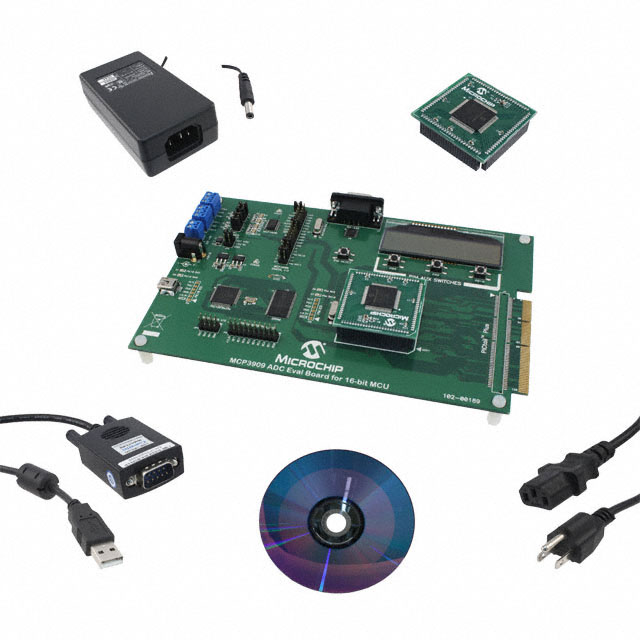

MCP3909EV-MCU16

MCP3909EV-MCU16

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP3909EV-MCU16 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP3909EV-MCU16
Manufacturer	Micrel / Microchip Technology
Description	EVALUATION BOARD FOR MCP3909
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4826 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MCP3909EV-MCU16	Manufacturer	Micrel / Microchip Technology
Description	EVALUATION BOARD FOR MCP3909	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4826 pcs	Data sheet	MCP3909 MCP3909 Eval Board User's Guide dsPIC33FJ128GP206,MCP3909 Ref Design Guide
Category	Development Boards, Kits, Programmers	Utilized IC / Part	MCP3909
Supplied Contents	Board(s)	Series	-
Sampling Rate (Per Second)	15k	Power (Typ) @ Conditions	-
Other Names	MCP3909EVMCU16	Number of Bits	16
Number of A/D Converters	2	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Range	±1 V
Detailed Description	MCP3909 - 16 Bit 15k Samples per Second Analog to Digital Converter (ADC) Evaluation Board	Data Interface	Serial
