Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > MCP3909RD-1PH1

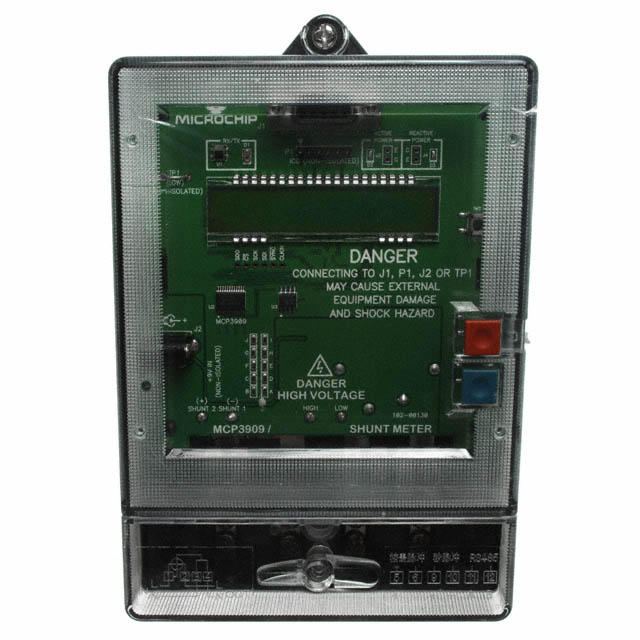

MCP3909RD-1PH1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP3909RD-1PH1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP3909RD-1PH1
Manufacturer	Micrel / Microchip Technology
Description	BOARD DES MCP3909 ENERGY METER
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 5980 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MCP3909RD-1PH1	Manufacturer	Micrel / Microchip Technology
Description	BOARD DES MCP3909 ENERGY METER	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5980 pcs	Data sheet	MCP3909 MCP3909 & PIC18F85J90 Ref Design
Category	Development Boards, Kits, Programmers	Utilized IC / Part	MCP3909, PIC18F85J90
Type	Power Management	Supplied Contents	Board(s)
Series	-	Secondary Attributes	16-Bit ADC
Primary Attributes	Single Phase Shunt Energy Meter	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Function	Energy/Power Meter
Embedded	Yes, MCU, 8-Bit	Detailed Description	MCP3909, PIC18F85J90 Energy/Power Meter Power Management Evaluation Board
