LSHD-F101

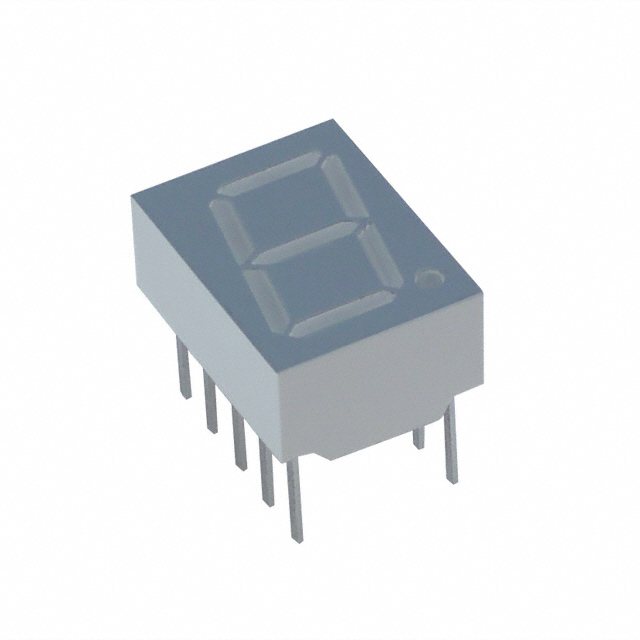

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LSHD-F101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LSHD-F101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LSHD-F101 |
|---|---|
| Manufacturer | Lite-On, Inc. |
| Description | LED 7-SEG .39" RED 650NM CA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 36 pcs | 108 pcs | 252 pcs |
|---|---|---|---|---|---|
| $0.542 | $0.441 | $0.339 | $0.305 | $0.271 | |
| 504 pcs | 1008 pcs | 2520 pcs | 5004 pcs | ||
| $0.23 | $0.19 | $0.18 | $0.176 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LSHD-F101 | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | LED 7-SEG .39" RED 650NM CA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 134988 pcs | Data sheet | LSHD-F101 |
| Category | Optoelectronics | Wavelength - Peak | 650nm |
| Voltage - Forward (Vf) (Typ) | 2.1V | Size / Dimension | 0.508" H x 0.382" W x 0.240" D (12.90mm x 9.70mm x 6.10mm) |
| Series | - | Power Dissipation (Max) | 70mW |
| Packaging | Tube | Package / Case | 10-DIP (0.300", 7.62mm) |
| Other Names | 160-1578-5 LSHDF101 |
Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 9.75mcd |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.39" (10.00mm) |
| Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Anode 2.1V 20mA 0.508" H x 0.382" W x 0.240" D (12.90mm x 9.70mm x 6.10mm) 10-DIP (0.300", 7.62mm) | Current - Test | 20mA |
| Common Pin | Common Anode | Color | Red |
