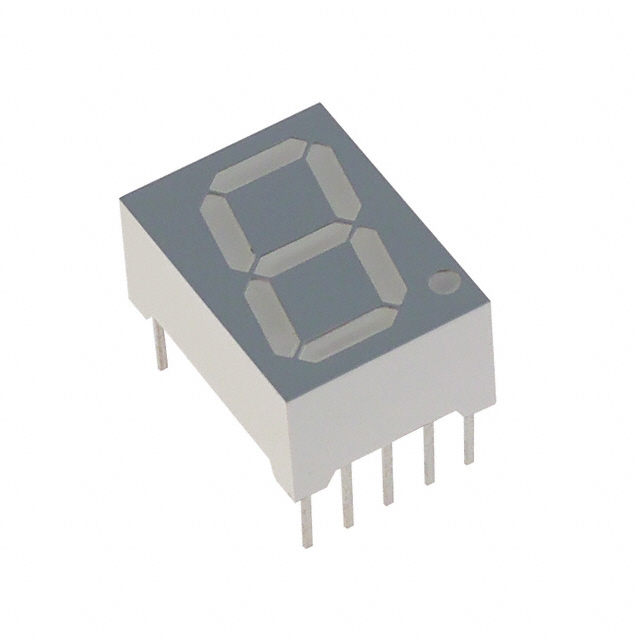

LSHD-5503
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LSHD-5503 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LSHD-5503 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LSHD-5503 |
|---|---|
| Manufacturer | Lite-On, Inc. |
| Description | LED 7-SEG .56" RED 632NM CC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 120 pcs | 280 pcs |
|---|---|---|---|---|---|
| $0.62 | $0.504 | $0.388 | $0.349 | $0.31 | |
| 520 pcs | 1000 pcs | 2520 pcs | 5000 pcs | ||
| $0.264 | $0.217 | $0.206 | $0.202 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LSHD-5503 | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | LED 7-SEG .56" RED 632NM CC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 116115 pcs | Data sheet | LSHD-5503 |
| Category | Optoelectronics | Wavelength - Peak | 632nm |
| Voltage - Forward (Vf) (Typ) | 2.1V | Size / Dimension | 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) |
| Series | - | Power Dissipation (Max) | 70mW |
| Packaging | Tube | Package / Case | 10-DIP (0.600", 15.24mm) |
| Other Names | 160-1576-5 LSHD5503 |
Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 17mcd |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.56" (14.22mm) |
| Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Cathode 2.1V 20mA 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) 10-DIP (0.600", 15.24mm) | Current - Test | 20mA |
| Common Pin | Common Cathode | Color | Red |
