LSHD-7803

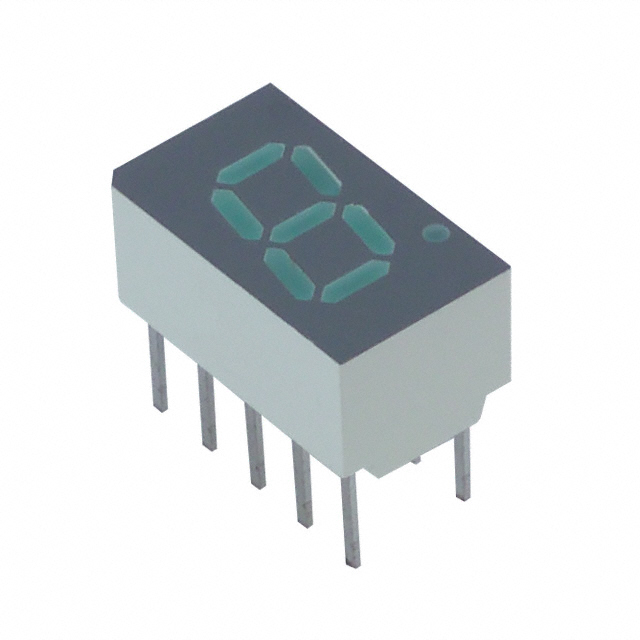

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LSHD-7803 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LSHD-7803 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LSHD-7803 |
|---|---|
| Manufacturer | Lite-On, Inc. |
| Description | LED 7-SEG .3" GREEN 565NM CC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 39 pcs | 117 pcs | 273 pcs |
|---|---|---|---|---|---|
| $0.575 | $0.467 | $0.359 | $0.324 | $0.288 | |
| 507 pcs | 1014 pcs | 2535 pcs | 5031 pcs | ||
| $0.244 | $0.201 | $0.191 | $0.187 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LSHD-7803 | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | LED 7-SEG .3" GREEN 565NM CC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 127820 pcs | Data sheet | LSHD-7803 |
| Category | Optoelectronics | Wavelength - Peak | 565nm |
| Voltage - Forward (Vf) (Typ) | 2.1V | Size / Dimension | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) |
| Series | - | Power Dissipation (Max) | 75mW |
| Packaging | Tube | Package / Case | 10-DIP (0.200", 5.08mm) |
| Other Names | 160-1574-5 LSHD7803 |
Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 1.6mcd |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.30" (7.62mm) |
| Detailed Description | Character LED Display Module Green 7-Segment 1 Character Common Cathode 2.1V 20mA 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) 10-DIP (0.200", 5.08mm) | Current - Test | 20mA |
| Common Pin | Common Cathode | Color | Green |
