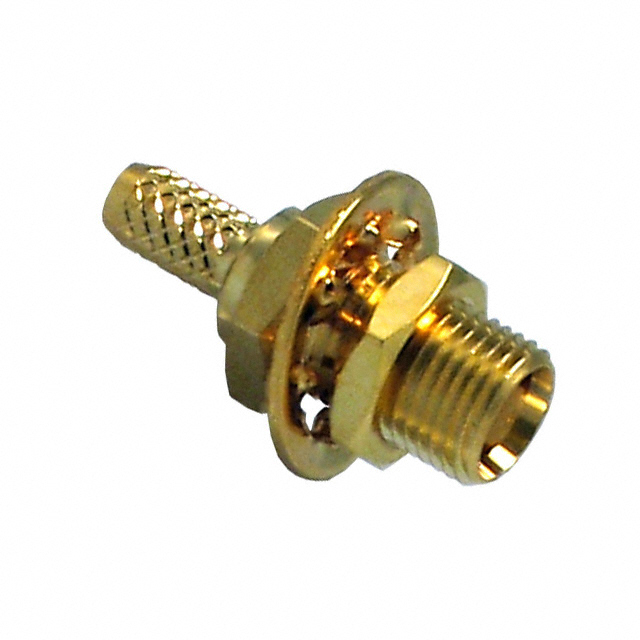

CONMCX005
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CONMCX005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CONMCX005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CONMCX005 |
|---|---|
| Manufacturer | Linx Technologies |
| Description | CONN MCX RCPT STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $1.559 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CONMCX005 | Manufacturer | Linx Technologies |
|---|---|---|---|
| Description | CONN MCX RCPT STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23269 pcs | Data sheet | CONMCX005 DrawingMCX SeriesRF Connector Overview Guide~ |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.1dB | Ingress Protection | - |
| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MCX Connector Receptacle, Female Socket 50 Ohm Panel Mount Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Female Socket |
| Connector Style | MCX | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-174 |
| Body Material | Brass | Body Finish | Gold |
