CONMCX012

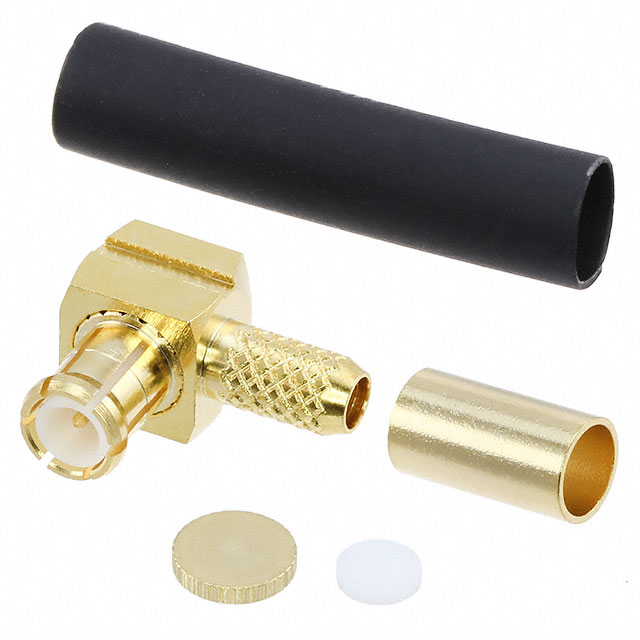

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CONMCX012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CONMCX012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CONMCX012 |
|---|---|
| Manufacturer | Linx Technologies |
| Description | CONN MCX PLUG R/A 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.402 | $1.287 | $1.165 | $1.071 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CONMCX012 | Manufacturer | Linx Technologies |
|---|---|---|---|
| Description | CONN MCX PLUG R/A 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31811 pcs | Data sheet | MCX SeriesCONMCX012 DrawingRF Connector Overview Guide~ |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.2dB | Ingress Protection | - |
| Includes | 5 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink, 1 Insulator | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | MCX | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-174 |
| Body Material | Brass | Body Finish | Gold |
