CONMCX001-SMD

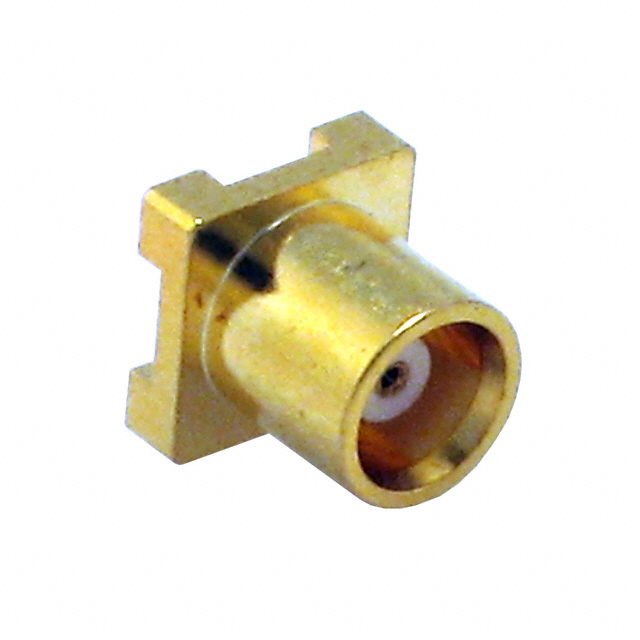

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CONMCX001-SMD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CONMCX001-SMD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CONMCX001-SMD |
|---|---|
| Manufacturer | Linx Technologies |
| Description | CONN MCX RCPT STR 50 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.301 | $1.189 | $1.085 | $1.048 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CONMCX001-SMD | Manufacturer | Linx Technologies |
|---|---|---|---|
| Description | CONN MCX RCPT STR 50 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34803 pcs | Data sheet | MCX SeriesCONMCX001-SMD DrawingRF Connector Overview Guide~ |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | CONMCX001SMD | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Surface Mount |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.1dB |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | MCX Connector Receptacle, Female Socket 50 Ohm Surface Mount Solder | Contact Termination | Solder |
| Connector Type | Receptacle, Female Socket | Connector Style | MCX |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
