RGTV60TK65DGVC11

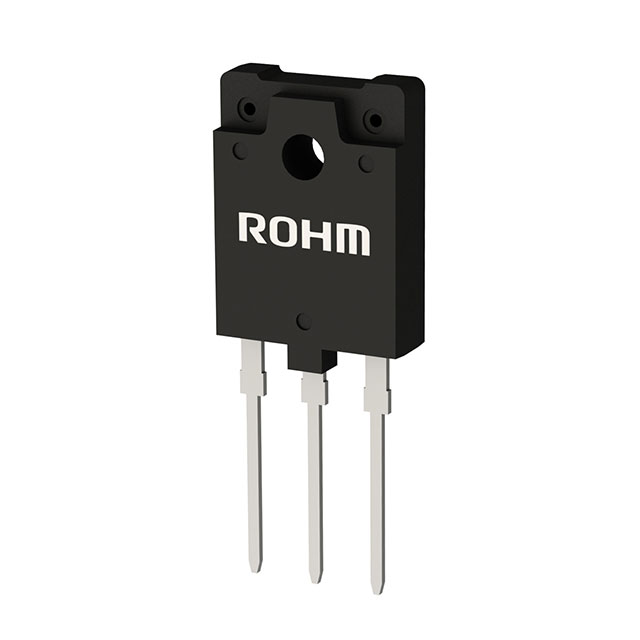

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RGTV60TK65DGVC11 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RGTV60TK65DGVC11 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RGTV60TK65DGVC11 |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | 650V 30A FIELD STOP TRENCH IGBT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.241 | $2.00 | $1.80 | $1.64 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.48 | $1.328 | $1.12 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | RGTV60TK65DGVC11 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | 650V 30A FIELD STOP TRENCH IGBT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29394 pcs | Data sheet | RGTV60TK65D |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 650V |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 30A | Test Condition | 400V, 30A, 10 Ohm, 15V |
| Td (on/off) @ 25°C | 33ns/105ns | Switching Energy | 570µJ (on), 500µJ (off) |
| Supplier Device Package | TO-3PFM | Series | - |
| Reverse Recovery Time (trr) | 95ns | Power - Max | 76W |
| Package / Case | TO-3PFM, SC-93-3 | Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard | IGBT Type | Trench Field Stop |
| Gate Charge | 64nC | Detailed Description | IGBT Trench Field Stop 650V 33A 76W Through Hole TO-3PFM |
| Current - Collector Pulsed (Icm) | 120A | Current - Collector (Ic) (Max) | 33A |
