RGTH80TS65GC11

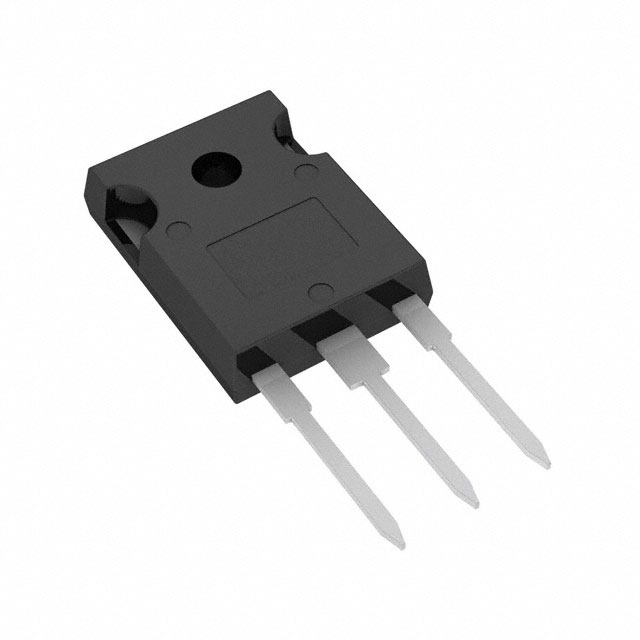

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RGTH80TS65GC11 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RGTH80TS65GC11 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RGTH80TS65GC11 |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | 650V 40A FIELD STOP TRENCH IGBT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.379 | $1.232 | $1.109 | $1.011 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.912 | $0.818 | $0.69 | $0.657 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RGTH80TS65GC11 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | 650V 40A FIELD STOP TRENCH IGBT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49377 pcs | Data sheet | RGTH80TS65TO-247N IGBT Taping Spec |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 650V |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 40A | Test Condition | 400V, 40A, 10 Ohm, 15V |
| Td (on/off) @ 25°C | 34ns/120ns | Switching Energy | - |
| Supplier Device Package | TO-247N | Series | - |
| Power - Max | 234W | Package / Case | TO-247-3 |
| Operating Temperature | -40°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Standard |
| IGBT Type | Trench Field Stop | Gate Charge | 79nC |
| Detailed Description | IGBT Trench Field Stop 650V 70A 234W Through Hole TO-247N | Current - Collector Pulsed (Icm) | 160A |
| Current - Collector (Ic) (Max) | 70A |
